5% 10% 15% Silver Brazing Alloy For The Ultimate Fix for Copper & Stainless Steel

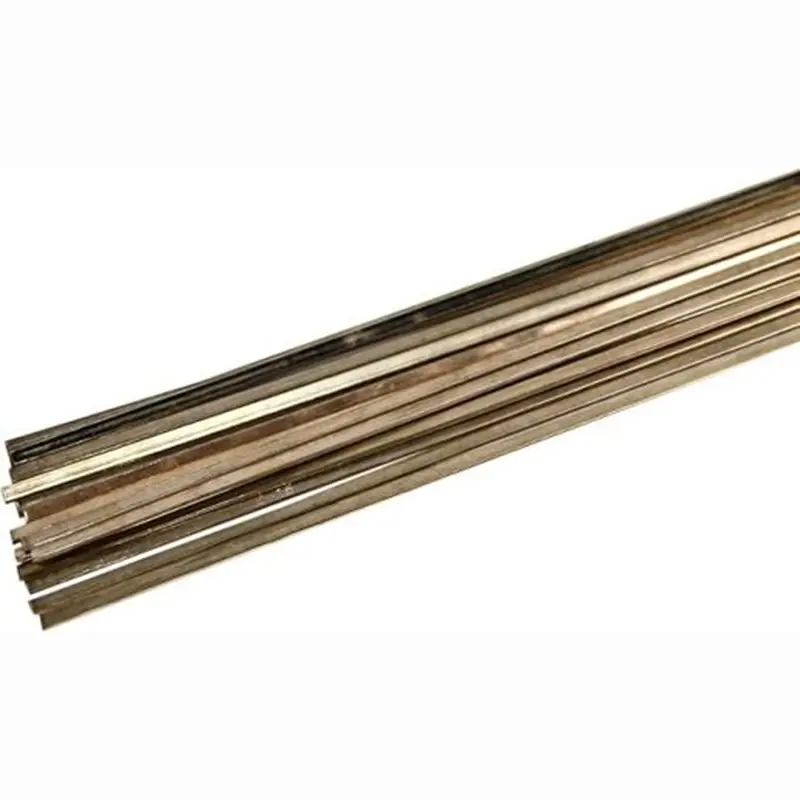

Silver brazing alloy is a brazing filler material with silver (Ag) as the main component. It is usually made of silver, copper (Cu), zinc (Zn), tin (Sn) and other metals melted in a specific proportion. It wets the surface of the base material through capillary action to form a high-strength, high-airtight permanent metal connection. It is suitable for welding stainless steel, copper alloy, nickel-based alloy and dissimilar metals.

product details

Material

Ag、Cu、P、Zn、Sn

Advantages

① Excellent wettability and strength: The welding liquid can flow into the depth of the small brazing gap, so that the welded joint has higher strength and toughness, and the strength of the brazed joint can reach more than 90% of the base material.

② Low melting point: Working temperature 600°C~900°C, reducing the risk of thermal deformation and brazing time.

③ Good ductility and conductivity: The face-centered cubic (FCC) crystal structure of silver (Ag) enables it to undergo plastic deformation without cracking during welding, and silver is the metal with the best known conductivity (IACS 105%). Silver brazing alloys ensure conductivity through high silver content + low impurity control (oxygen content <0.01%).

Appliance

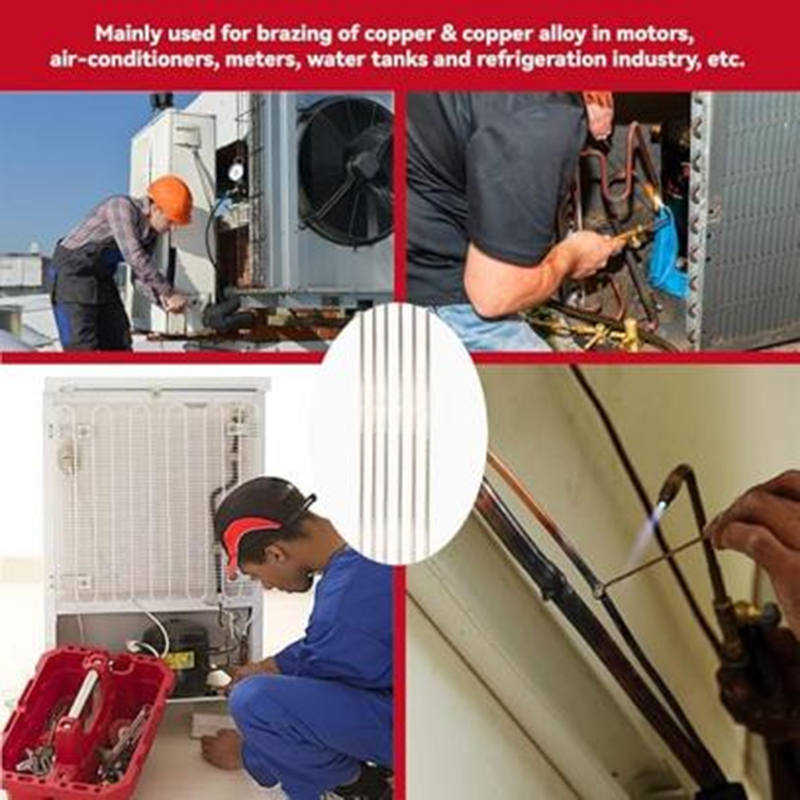

Particularly suitable for replacing split air-conditioning copper pipes, household refrigerators, commercial refrigeration units, filters in refrigeration system accessories, water compressors, etc., to ensure a firm and reliable connection

Product Paramenters

Code	Chemical Composition					Melting Temperature	Application
Code	Ag%	Cu%	P%	Sn	Zn	Melting Temperature	Application
2%	1.8-2.2	REM	6.8-7.2	/	/	643-788	Used for brazing copper and copper alloys in refrigerators, air conditioners and other refrigeration industries, as well as motor and instrument industries
5%	4.8-5.2	REM	5.8-6.2	/	/	645-815	It has good fluidity and filling capacity and is widely used in air conditioners, refrigerators, electromechanical and other industries, brazing of copper and copper alloys
10%	52-54	REM	9.0-11.0	/	/	815-850	It has a certain plasticity and is suitable for welding copper and alloy joints that cannot maintain a tight fit.
15%	14.5-15..5	REM	4.8-5.2	/	/	645-800	The joint has good plasticity and high electrical conductivity, and is suitable for brazing copper, copper alloys, tungsten, molybdenum and other metals.
25%	24-26	39-41	/	1.5-2.5	31-35	680-760	Used for brazing copper and copper alloys, copper and stainless steel, etc.
35%	34-36	25-27	/	/	19-23	605-700
