Capacitors Series Aluminum Electrolyte Capacitor Motor
Application scenario
1. Refrigeration Systems
Refrigerators
Air conditioners
2. Industrial Fluid Control
3. Assistance in Maintenance Operations
Feature
1. Energy storage characteristics: It has good energy storage ability and can store and release a large amount of electrical energy in a short time to meet the energy requirements of the motor during the startup and operation of the refrigeration equipment.
2. Good voltage resistance performance: It can withstand the high voltage during the operation of the refrigeration equipment.
3. High stability: The performance parameters of the capacitor are relatively stable under different environmental conditions and working states.

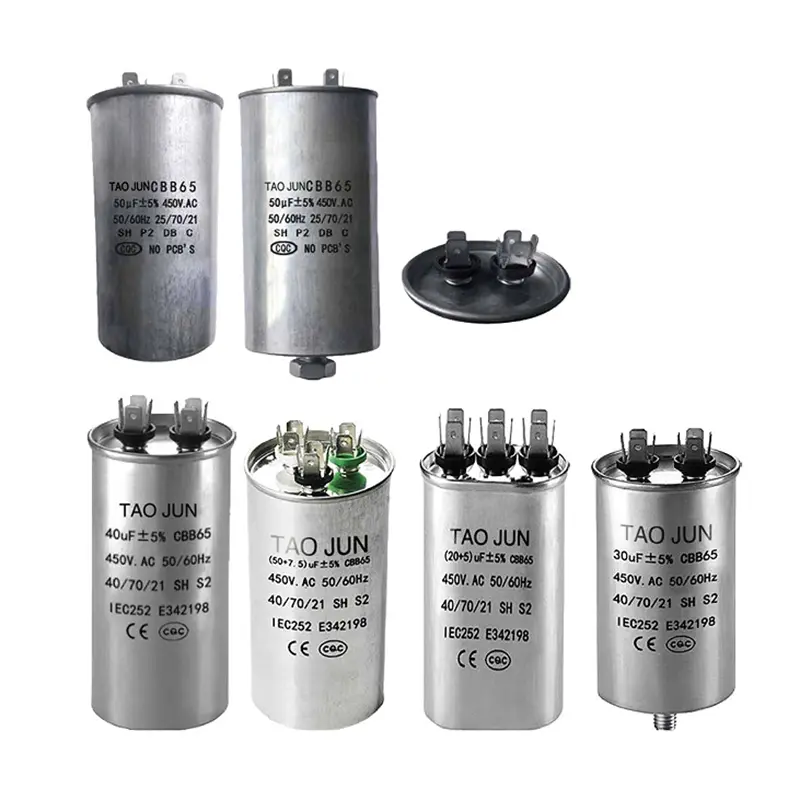

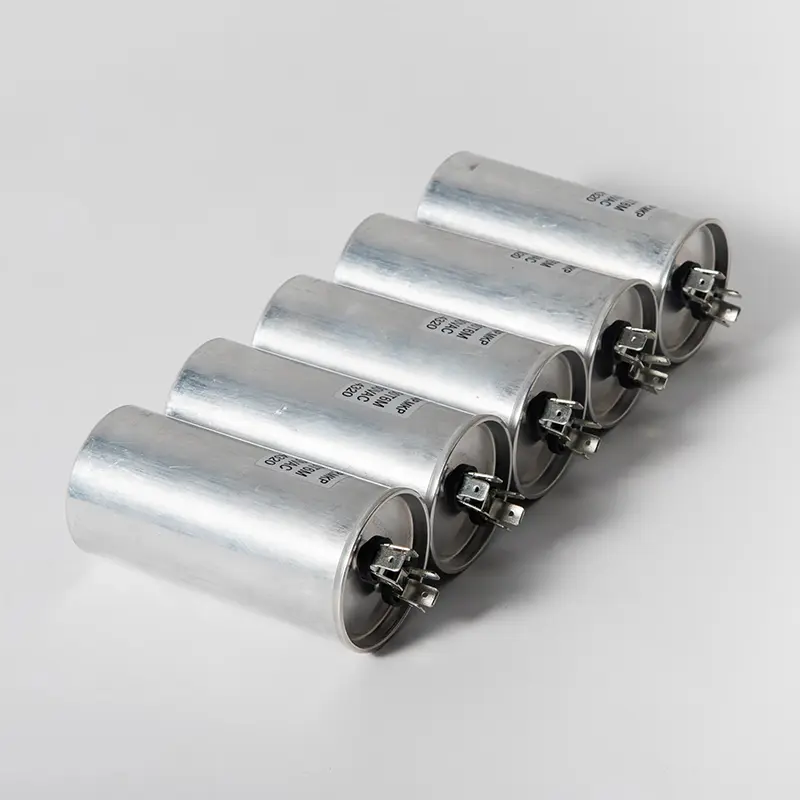

CBB65capacitor series
Parameter
1. Capacity Range: 3uF~200uF
2. Allowable deviation:±5%(J)
3. Rated voltage:250V、300V、350V、400V、450V、500V、630V
4. Loss: tgÃ≤ 10x10-4(23℃，f=100Hz)
5. Insulation resistance: CxRs>3000S(23℃，100VDC，1min)
6. Power characteristics:Medium powerTemperature coeffcient
7. Temperature coeffcient:-40℃~+105℃
Application scope
Used for starting and operating single-phase motors powered by AC power sources with frequencies of 50Hz/60Hz, such as household air conditioners, as well as power factor compensation for high-power lighting fixtures.

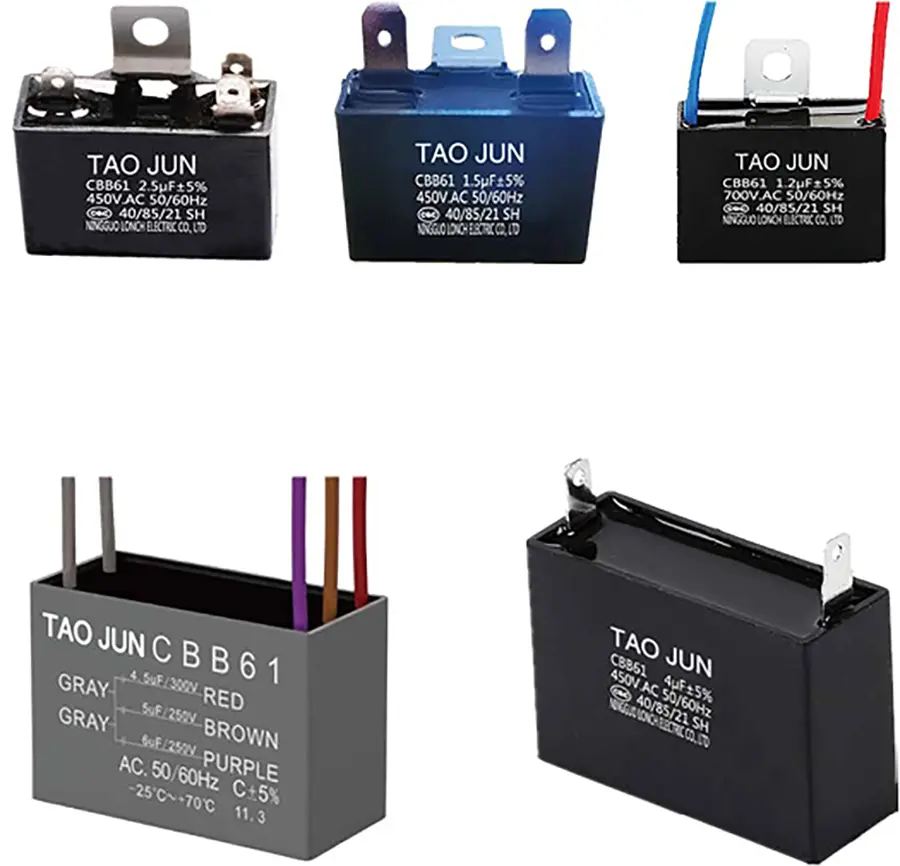

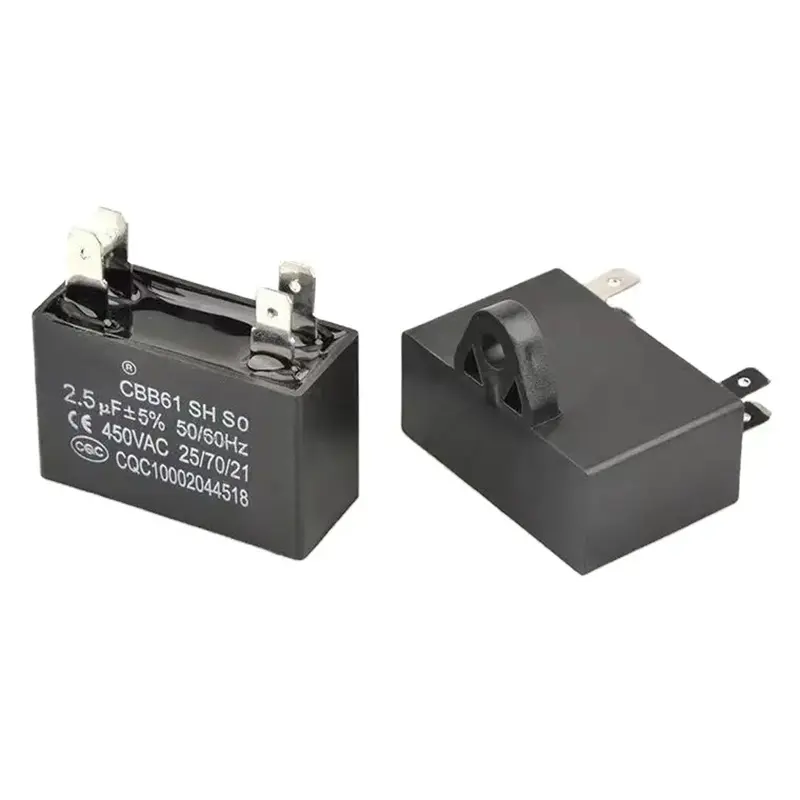

CBB61 capacitor series
Parameter
Capacity Range: 0.47μF~50μF
Allowable deviation: ±5%(J)、±10% (K)
Rated voltage: 250V、300V、350V、400V、450V、500V、630V
Voltage resistance value: 2.0Un(2s)
Loss: tgǒ≤10x10-4(23℃，f=100Hz)
Insulation resistance: CxRs>3000S(23℃，100VDC，1min)
Power characteristics: Medium powerTemperature coeffcient
Temperature coeffcient: -40℃~+105℃
Application scope
Suitable for the starting and operation of single-phase motors powered by 50HZ AC power supply, as well as machines that can regulate the speed of motors. It is an important supporting component for electric fans, range hoods, air conditioning fans, bread machines, and other devices.
