Factory Double Copper Filter Drier for Air Conditioner
Molecular sieve
Molecular sieve is a synthetic compound with microporous cubic crystal hole structure, which can absorb residual water in refrigeration system and allow refrigerant to pass through normally.
Product description
Feature：TAOJUN copper filter driers are designed to absorb moisture and acid, and to filter out impurities. Normally be instead as component and replaced as repair part for both domestic and commercial refrigerators, freezers.
1. Structure and material
Shell: high purity copper pipe (rust resistant, high pressure resistant)
Inner core: 3A molecular sieve (water absorption ≥20%) + activated carbon layer
Sealing process: argon arc welding to ensure no leakage
2. Core strengths
Prolong the life of the equipment: reduce the corrosion of water and acidic substances on the compressor
Fast cooling: reduce system resistance and improve refrigerant cycle efficiency
Widely used: household refrigerator, commercial cold storage, car air conditioning can be used
3. Application scenario
Refrigerator/freezer repair and replacement
Air conditioning system maintenance and upgrade
Industrial refrigeration equipment maintenance
A copper filter drier in a refrigeration system has two essential functions:
One: Absorbing moisture, preventing acids
Two: Providing physical filtration
Raw material:
Body shell: Cu-DHP
Molecular sieves: 100% XH-9
Screen: 200mesh
Wall thickness: 0.35-0.80mm

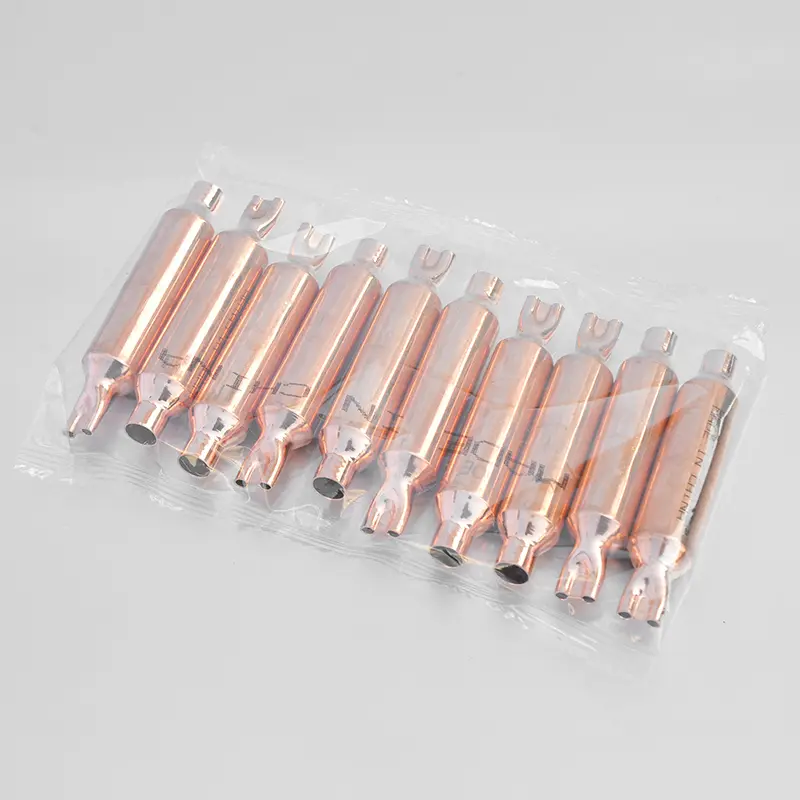

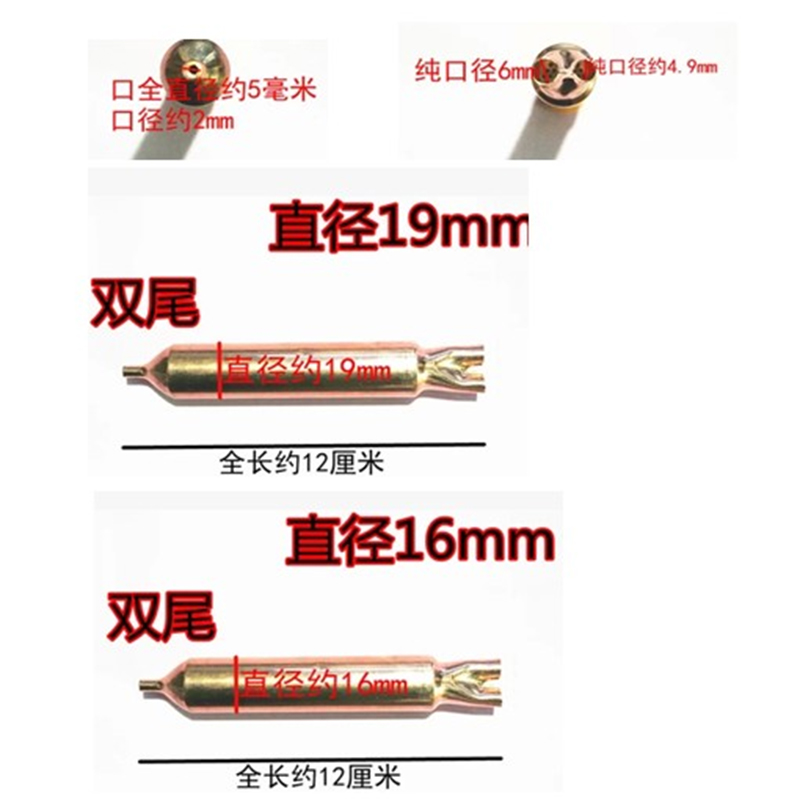

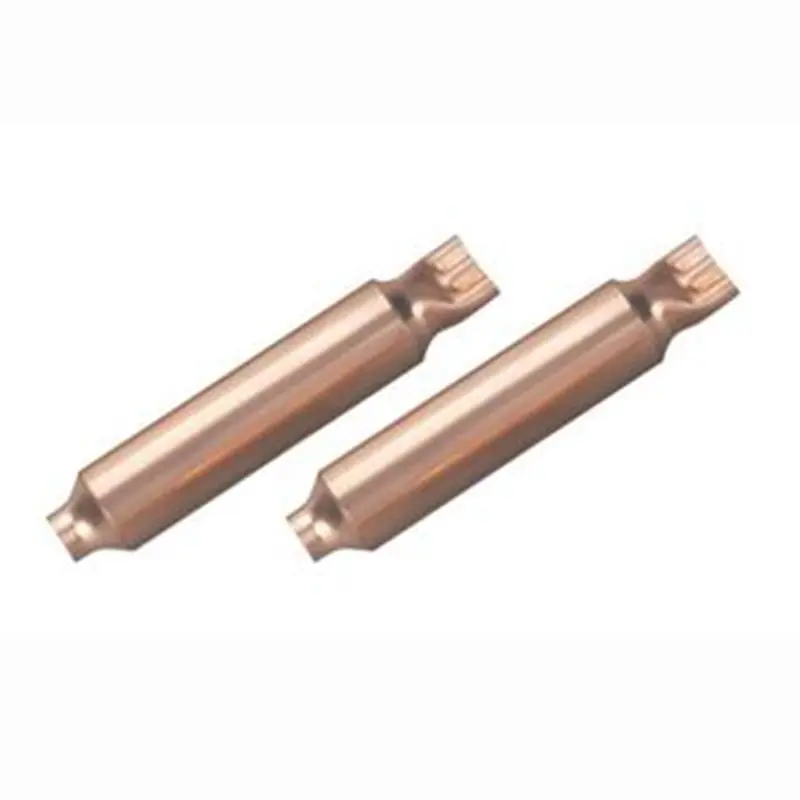

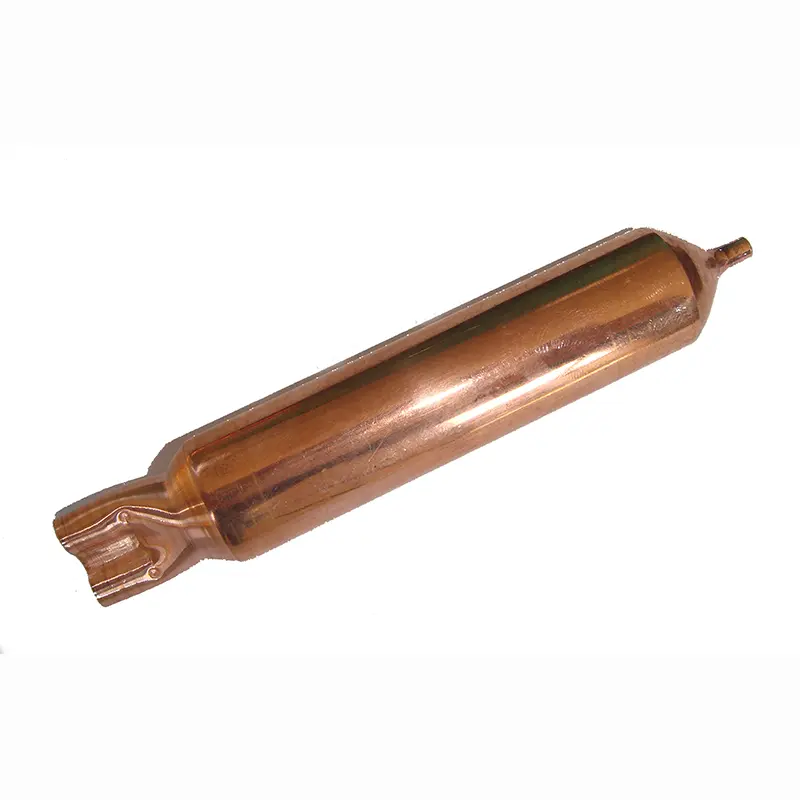

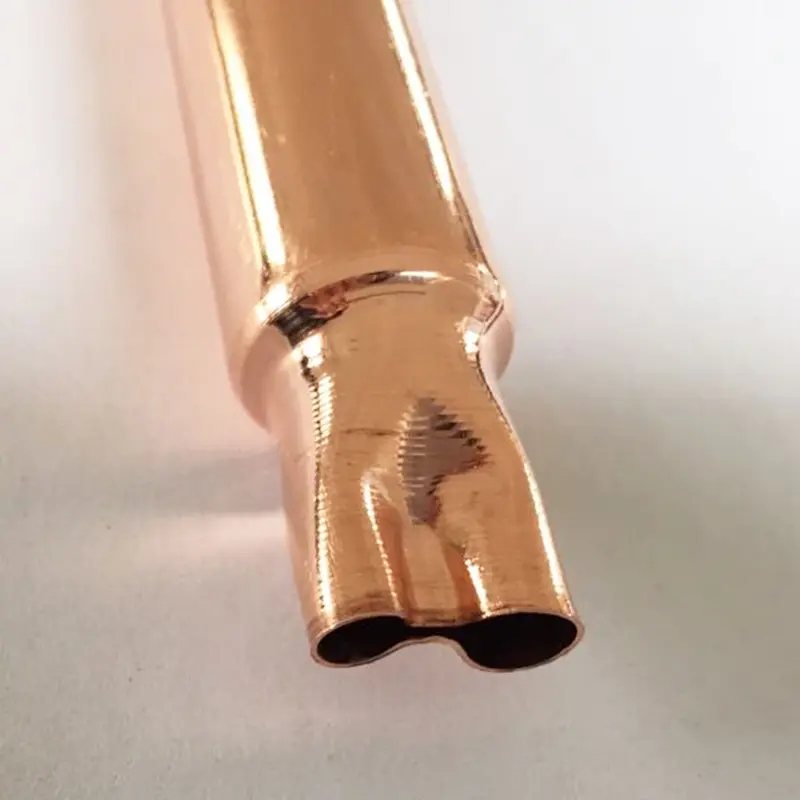

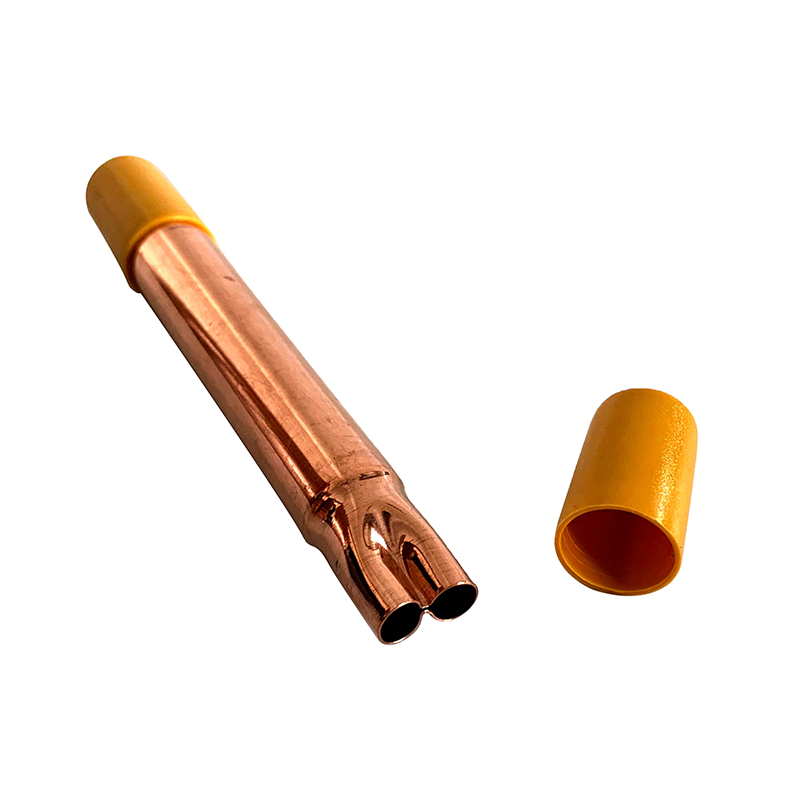

Product details

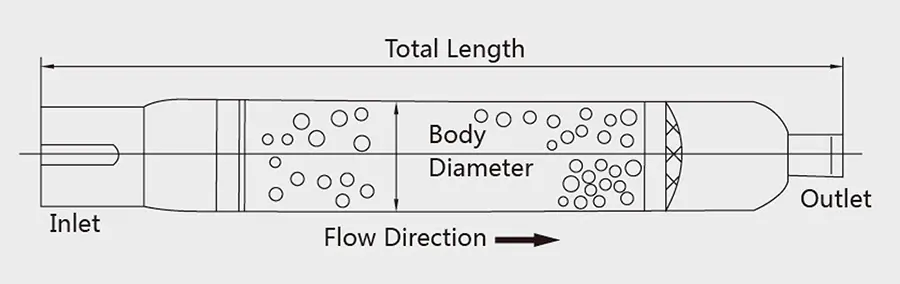

Parameter
| Model | Molecular sieves +5%,-0% | Body diameter +2 | Total length ±2 | Inlet (Inner Dia)+0. | Outlet (Out Dia)+0.1 |
| TJB10 | 10 | 16 |
118 |
5*6.4mm | 2.5mm |
| TJB10 | 10 | 16 |
118 |
6.35*6.35mm | 3.3mm |
| TJB8 | 8 | 19 |
90 |
6.35*6.35mm | 3.3mm |
| TJB10 | 10 | 19 |
95 |
5*6.4mm | 3.2mm |
| TJB15 | 15 | 19 |
120 |
5*6.2nmn | 2.5mm |
| TJB15 | 15 | 19 |
120 |
6.35*6.35mm | 3.3mm |
| TJB15 | 15 | 19 |
120 |
6.35*6.35mm | 3.2mm |
| TJB20 | 20 | 19 |
150 |
5*6.2mm | 2.5mm |
| TJB25 | 25 | 25 |
130 |
6.35*6.35mm | 3.2mm |
| TJB30 | 30 | 25 |
140 |
6.35*6.35mm | 3.2mm |
Note:all size are TAOJUN standard,other size can be made on request.

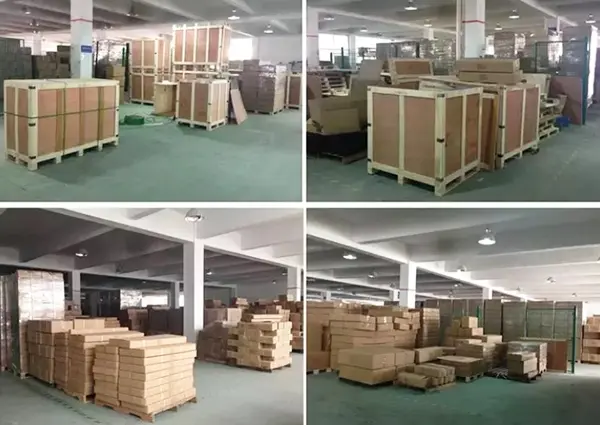

Packing and delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

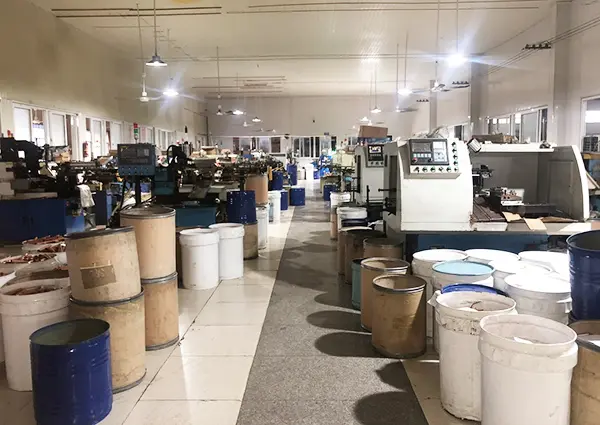

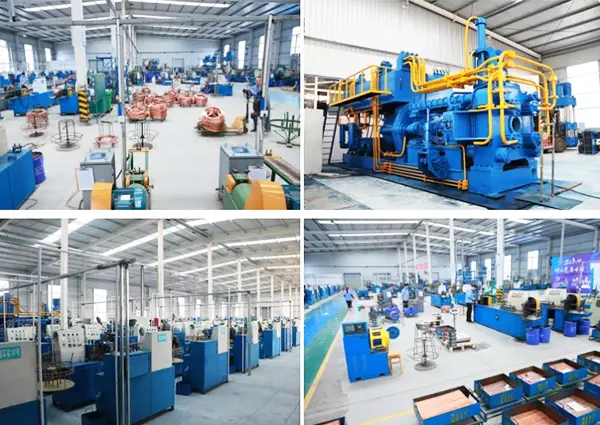

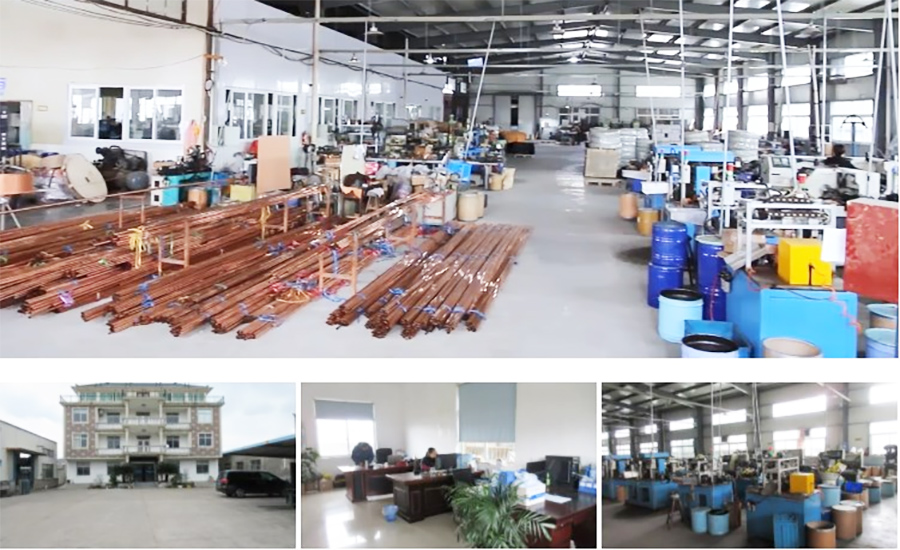

Our factory
