Electric Cooling Fan Motor for Refrigerator and Freezer Single Phase Shaded
Application scenario
1. Household Air Conditioning
2. Commercial Air Conditioning
3. Industrial Air Conditioning
Feature
1.High Efficiency and Energy Conservation: By applying advanced design and technology, it reduces energy consumption while supplying air. For example, the DC variable frequency motor can precisely control the speed and intelligently adjust the air volume according to the operation of the air conditioner and environmental changes, showing outstanding energy-saving effects.
2. Low Noise and Quiet Operation: It is mostly used in noise-sensitive spaces. Through multiple measures such as optimizing the structure, using low-noise bearings, and designing the fan blades, it reduces the vibration and noise generated during the motor's operation, creating a quiet environment.
3. Reliable and Durable: Stable operation over a long period is crucial. It is made of high-quality materials and through strict manufacturing processes, with excellent insulation, heat dissipation, and corrosion resistance. It can adapt to high-temperature and high-humidity working conditions, having a long service life and low failure rate.
4. Precise Speed Regulation: To meet diverse operation requirements, it can precisely control the speed by changing the power supply frequency and voltage, flexibly adjusting the air volume. According to the change of room temperature, it can intelligently adjust the air volume in the cooling and heating modes.
5. Strong Protection Performance: The motors of outdoor units have a high protection level, such as reaching IP54 or above. They can effectively resist the invasion of dust and rainwater, protect the internal components, and ensure normal operation in harsh outdoor environments.
6. Lightweight and Compact: Due to the compact space of the air conditioner, the motor is designed to be small in size and light in weight, which is convenient for the installation of both indoor and outdoor units. It also reduces the overall weight and volume of the air conditioner, making transportation and installation easier.

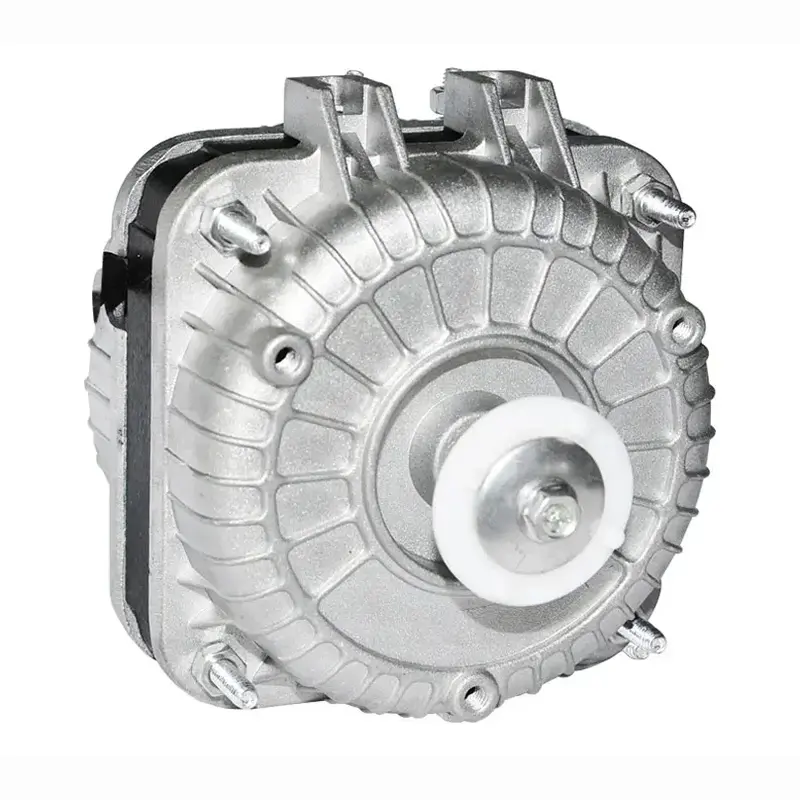

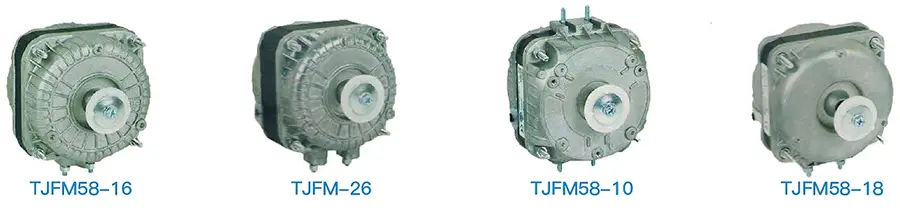

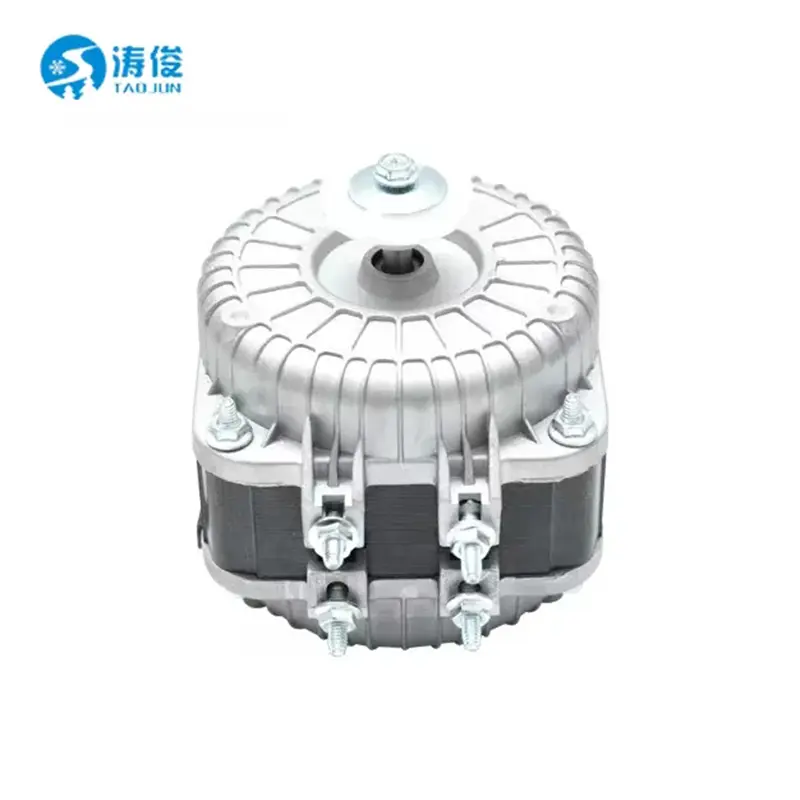

AC REFRIGERATOR MOTOR
Voltage: 220V or 110V
Frequency: 50Hz or 60Hz
Rotational speed: around 1400 - 2800 revolutions per minute
| Model | Input (w) | Output (w) | Voltage (v) | Current (A) | Frequency | Rotational F Speed |
an Size (mm) |
Angle Of Fan | Grade Of Insulation | Packing Size | ||||
| S | B | D | E | |||||||||||
| JFM3-10 | 18 | 3 | 220/230 | 0.14 | 50/60 | 1300/1550 154 | 31° | B | 80 90 47 101 | |||||
|
TJFM5-13 |
24 | 5 | 220/230 | 0.30 | 50/60 |
1300/1550170/22031° |
/27° | B | 80 | 123/122 | 47 | 112/100 | ||
|
TJFM7-13 |
31 | 7 | 220/230 | 0.22 | 50/60 |
1300/1550200/23031° |
/19° | B | 87 | 122/134 | 47 | 112/100 | ||
|
TJFM10-20 |
40 | 10 | 220/230 | 0.29 | 50/60 | 1300/1550 250 | 19° | B | 87 | 134 | 47 | 104 | ||
|
TJFM16-25 |
50 | 16 | 220/230 | 0.36 | 50/60 | 1300/1550 300 | 19° | B | 97 | 160 | 55 | 115 | ||
| TJFM18-30 | 60 | 18 | 220/230 | 0.40 | 50/60 | 1300/1550 300 | 19° | B | 97 | 160 | 55 | 115 | ||
| TJFM25-40 | 84 | 25 | 220/230 | 0.60 | 50/60 | 1300/1550 300 | 23° | B | 107 | 160 | 60 | 137 | ||
|
TJFM 34-45 |
106 | 34 | 220/230 | 0.75 | 50/60 | 1300/1550 300 | 27 | B | 129 | 160 | 60 | 137 | ||

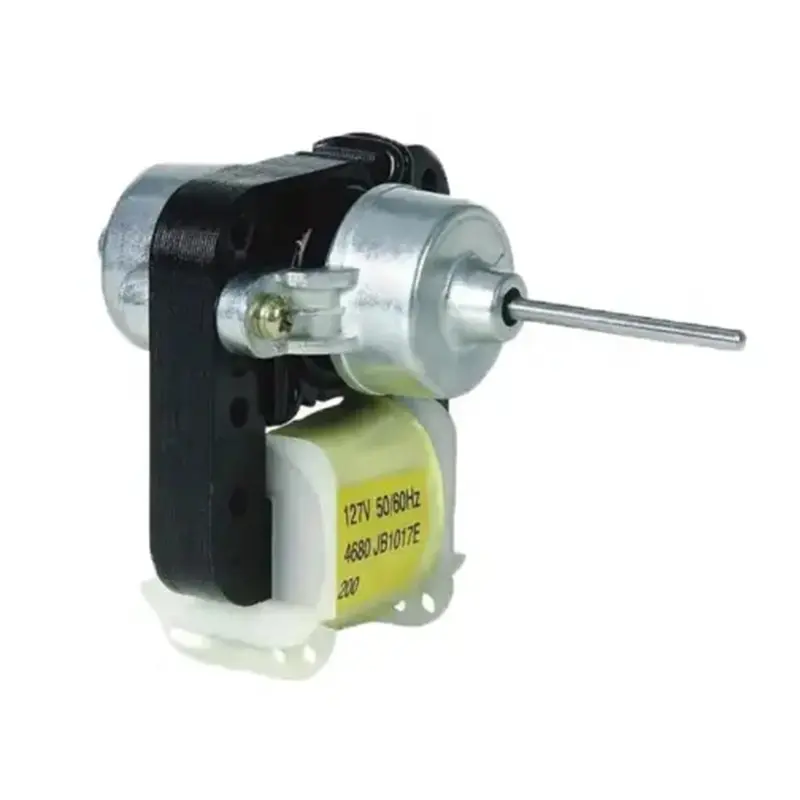

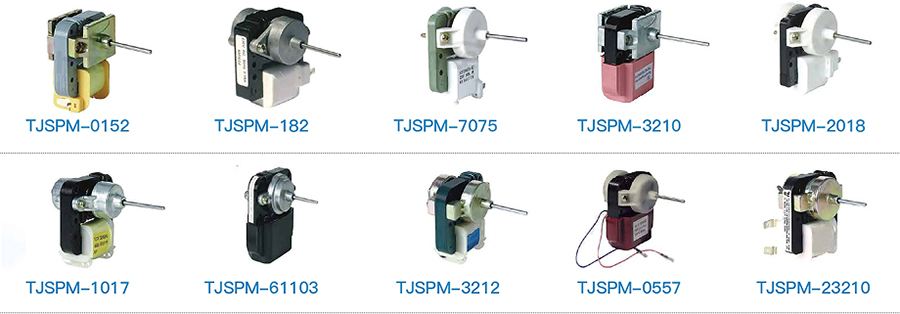

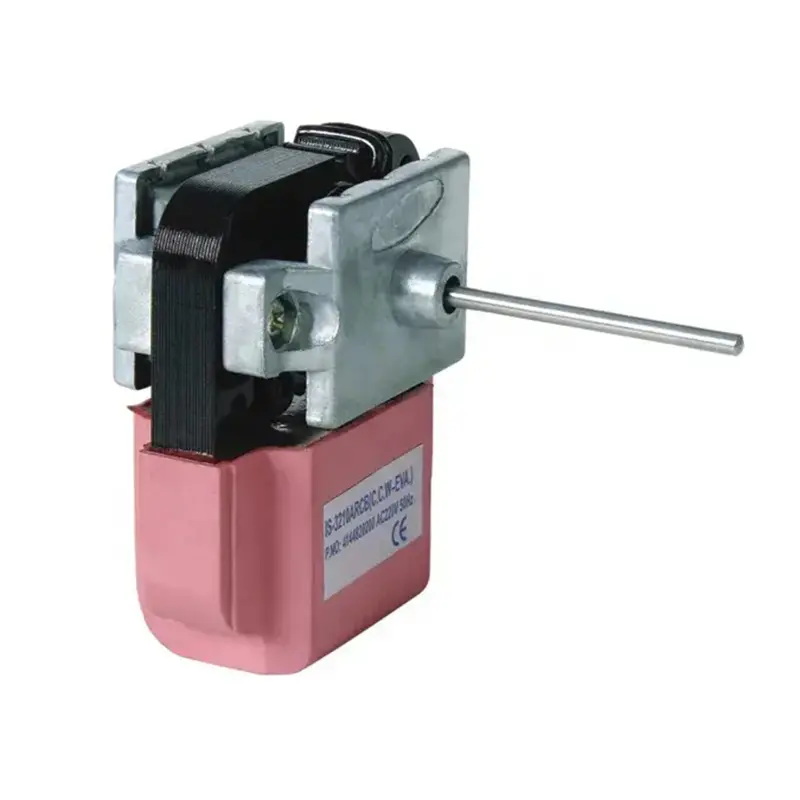

SHADED POLE MOTOR
Voltage: 220V or 110V
Frequency: 50Hz or 60Hz
Rotational speed: around 1000 - 3000 revolutions per minute
| Model | Voltage(v) | Frequency(Hz) | Current(A) | Input(w) |
Shaft Size (Inch) |
Rotation |
| TJSPM-10 | 220 | 50/60 | 0.12 | 13 | 1/8“*1” | CW |
| TJSPM-11 | 220 | 50/60 | 0.085 | 8 | 一 | CCW |
| TJSPM-12 | 220 | 50/60 | 0.18 | 15 | 3/16"/3/16" | CW |
| TJSPM-13 | 220 | 50/60 | 0.065 | 7 | 1/8"*1-5/16" | Cw/CCW |
| TJSPM-14 | 220 | 50/60 | 0.32 | 20 | 3/16"*1-7/16" | Cw/CCW |
| TJSPM-15 | 220 | 50 | 0.2 | 18 | 1/8”*2" | CW |
| TJSPM-16 | 220 | 50/60 | 0.06 | 6 | CW | |
| TJSPM-17 | 220 | 50/60 | 0.2 | 27 一 | CCW | |
| TJSPM-18 | 220 | 50 | 0.08 | 6.5 1/8"*1-5/16" | CW/CCW | |
