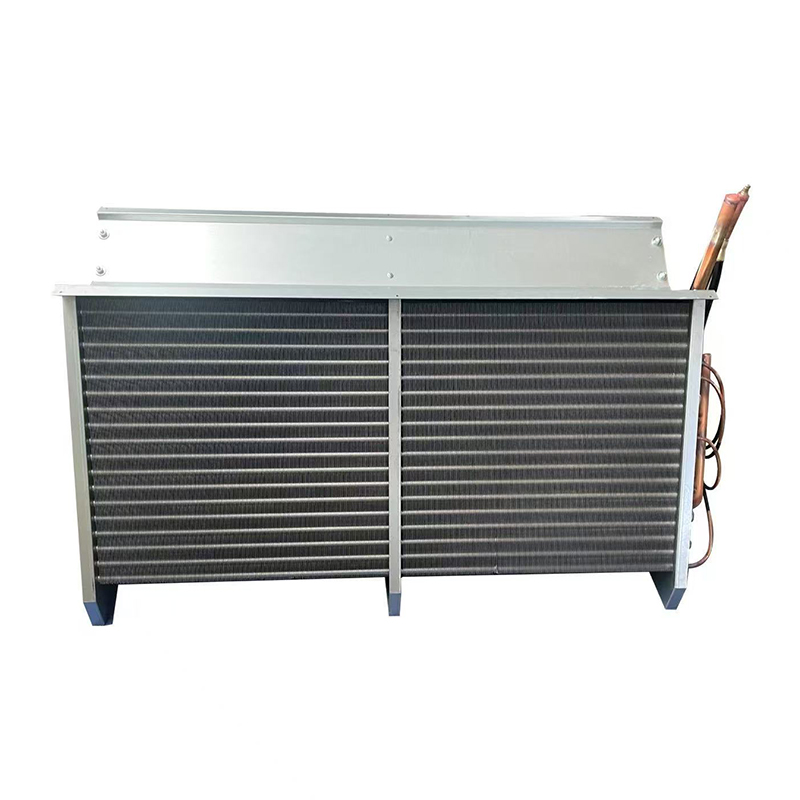

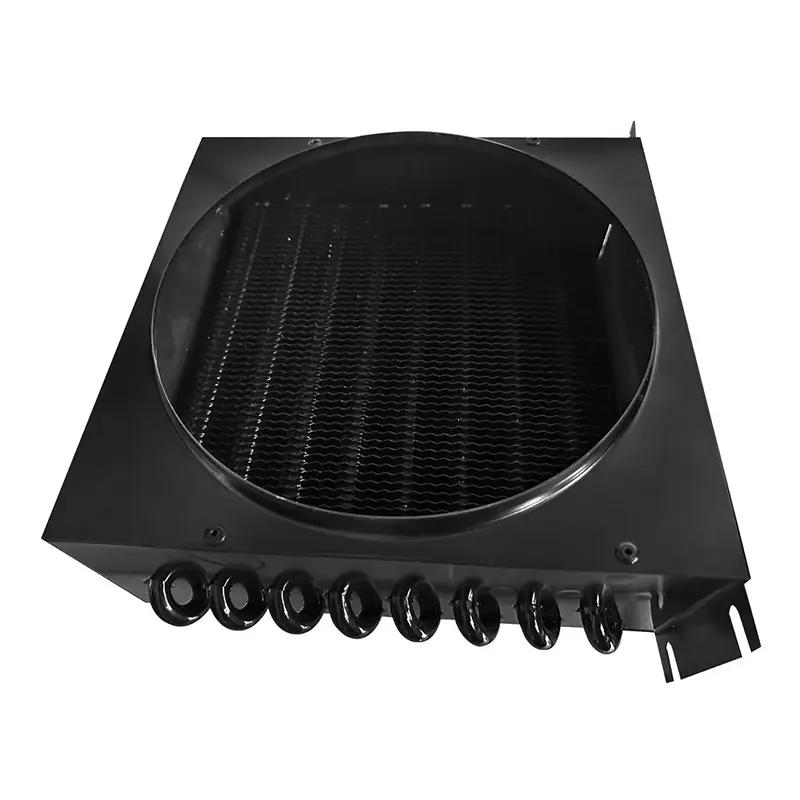

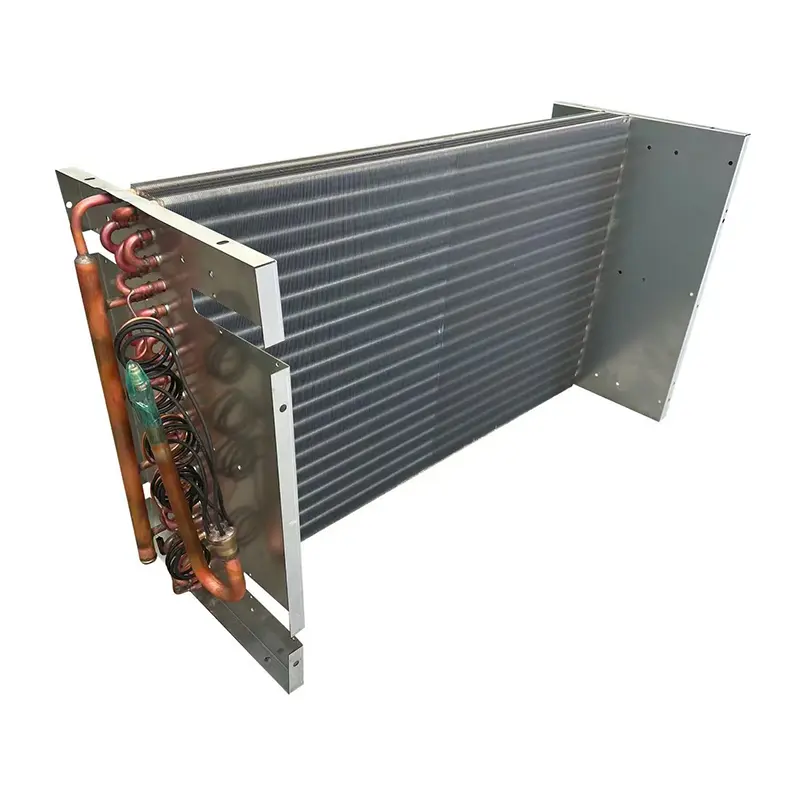

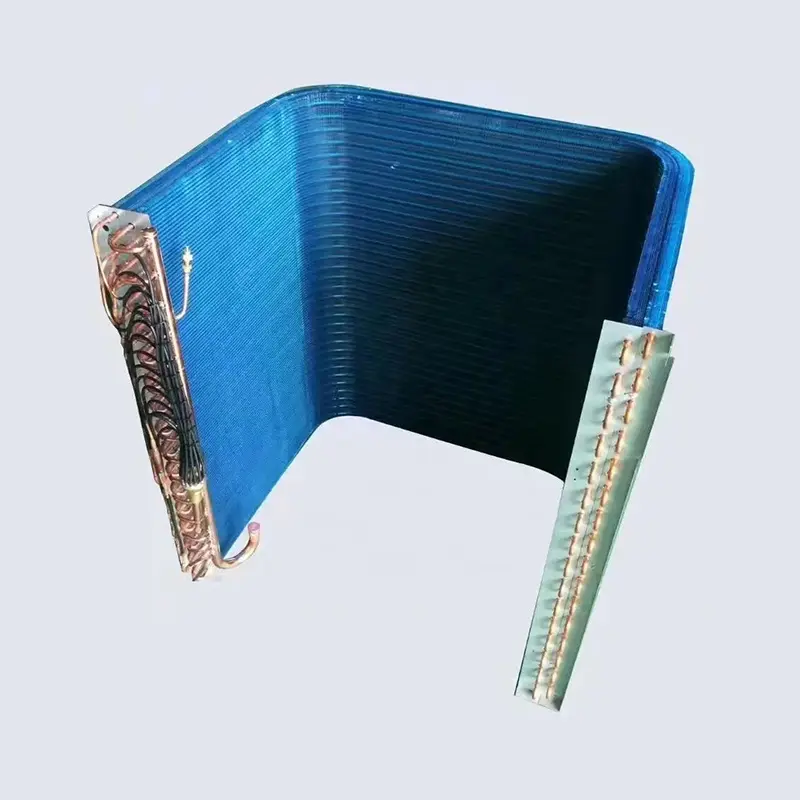

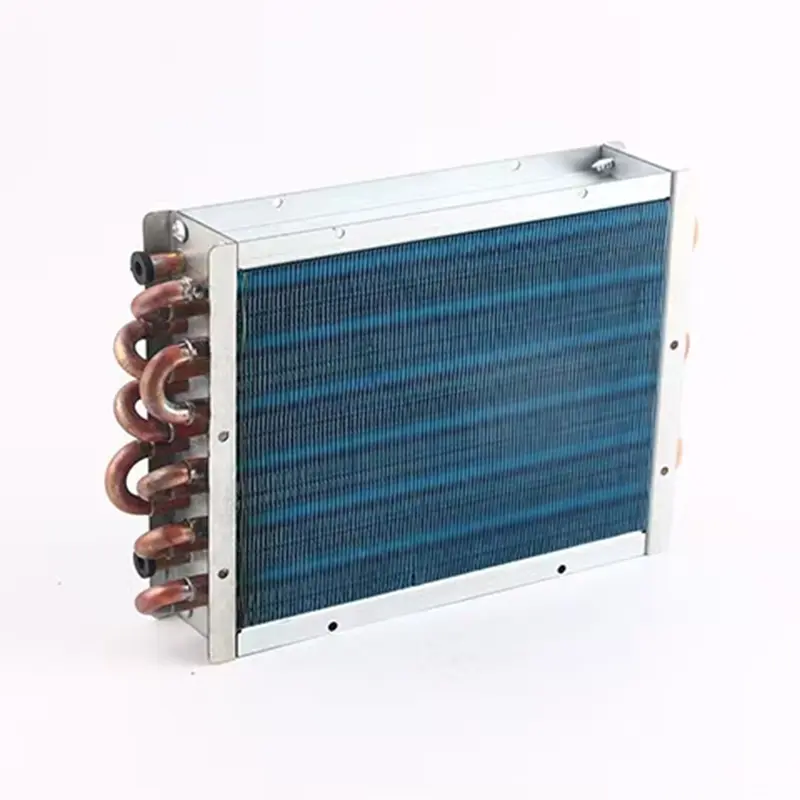

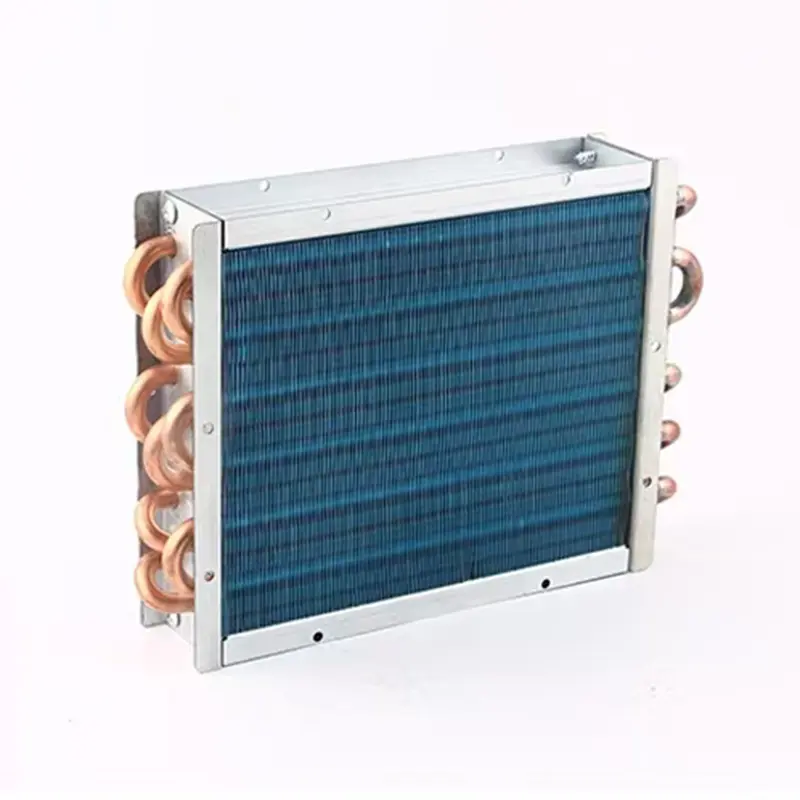

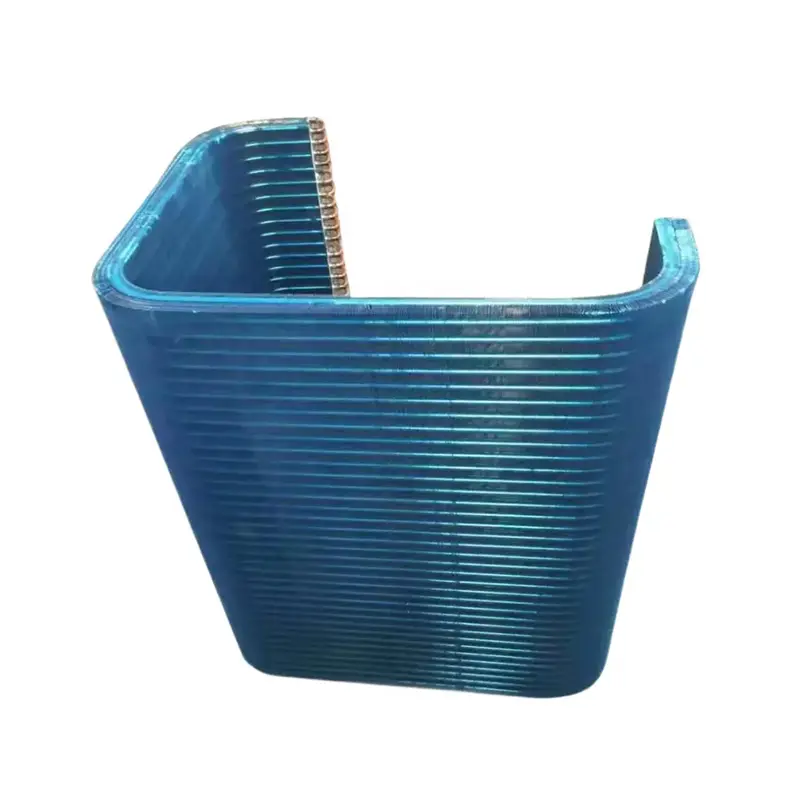

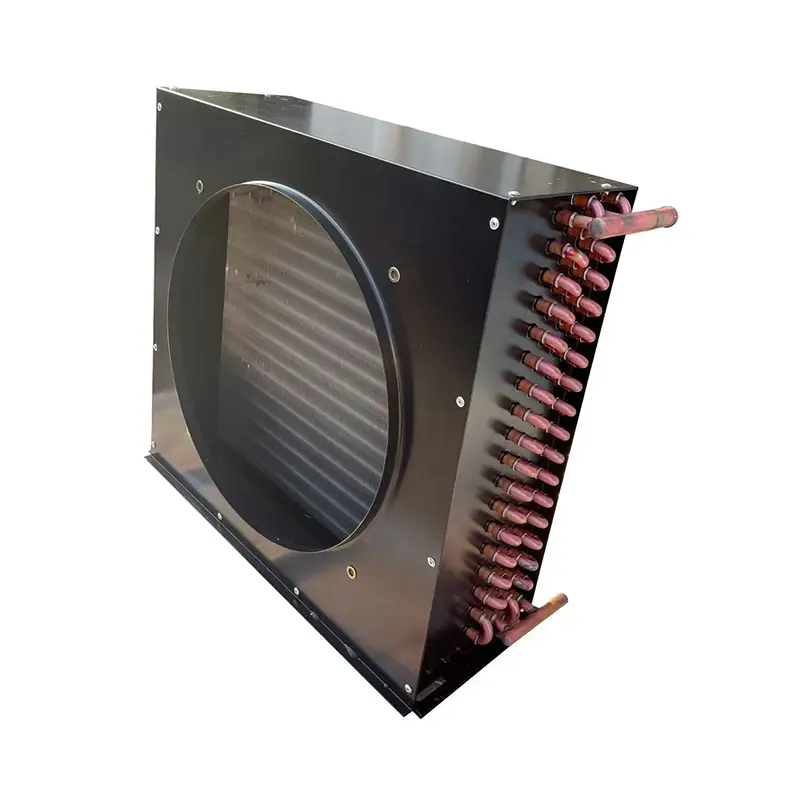

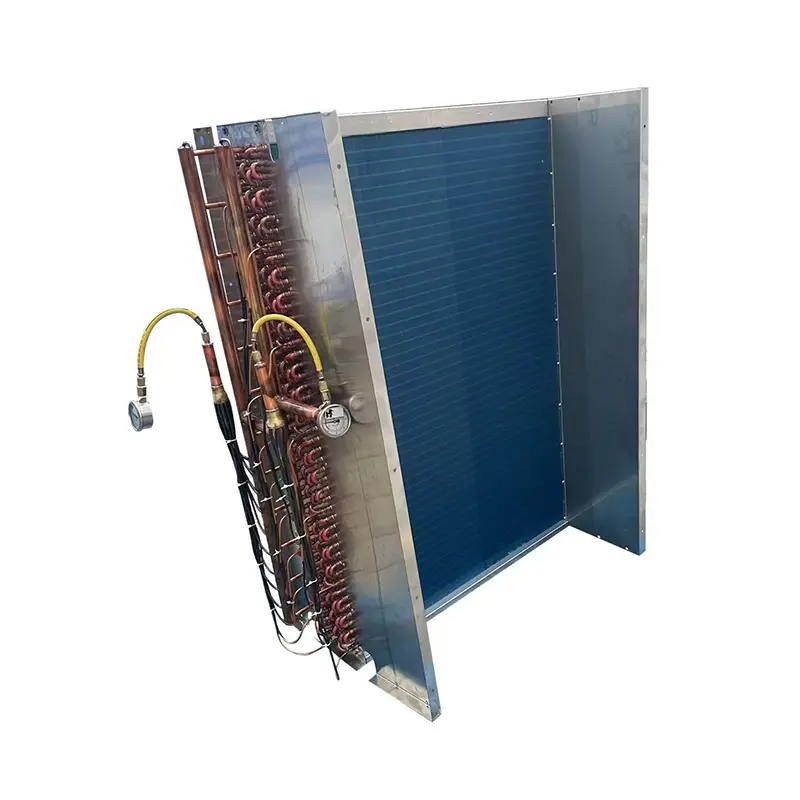

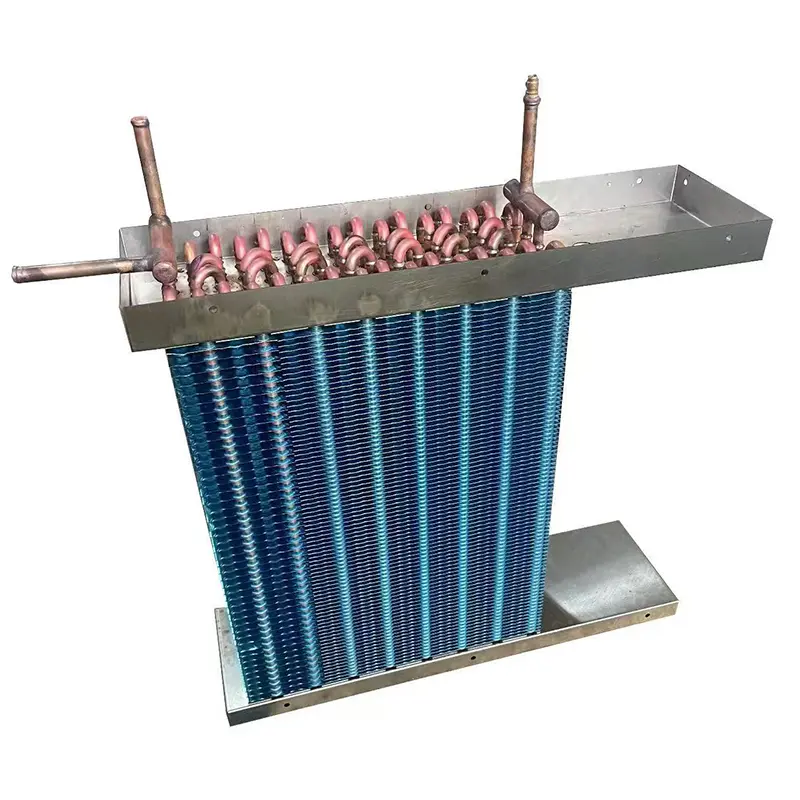

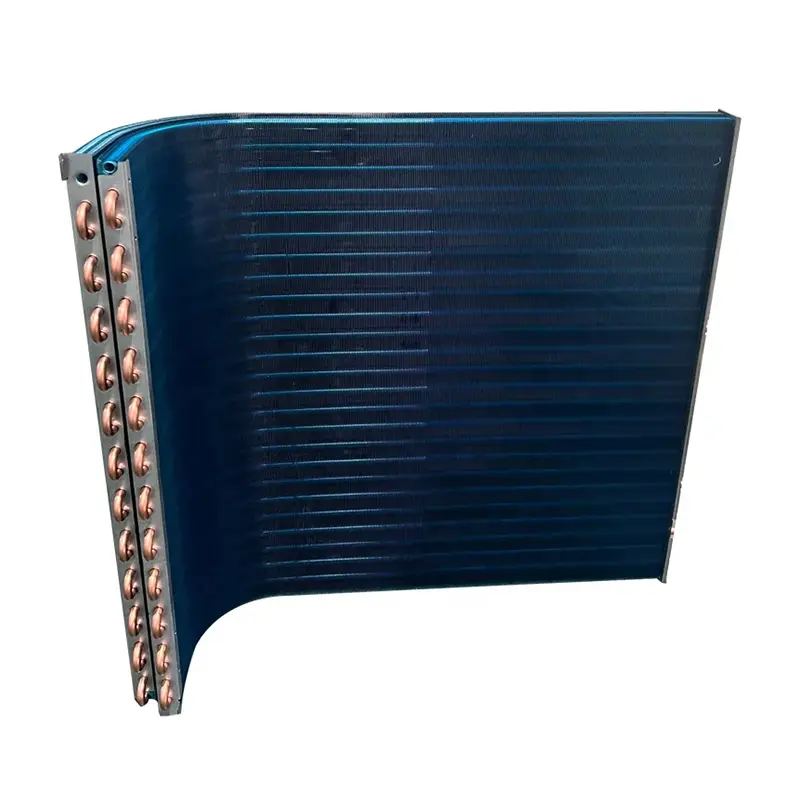

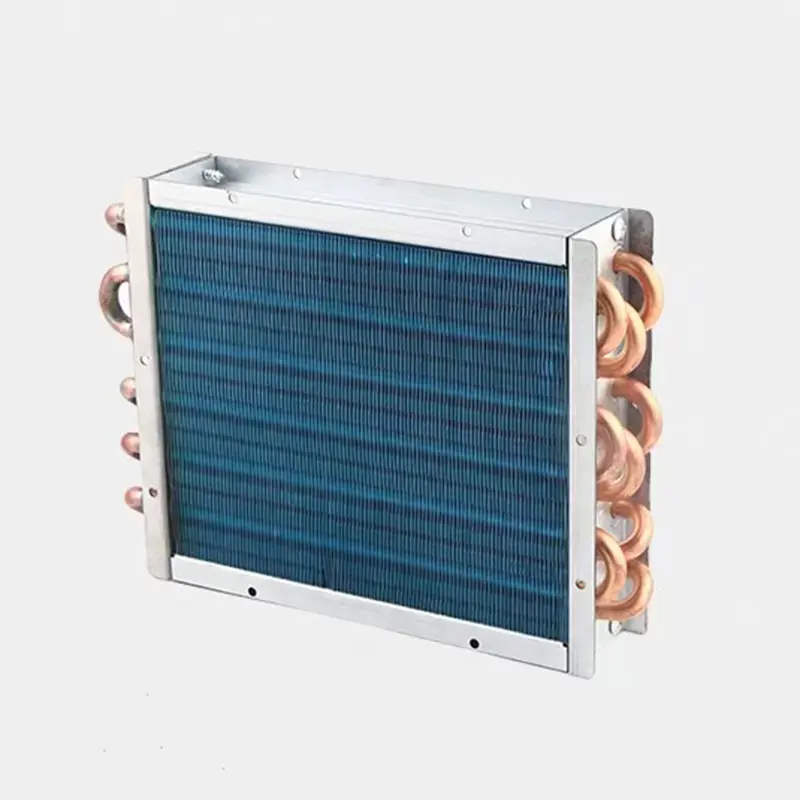

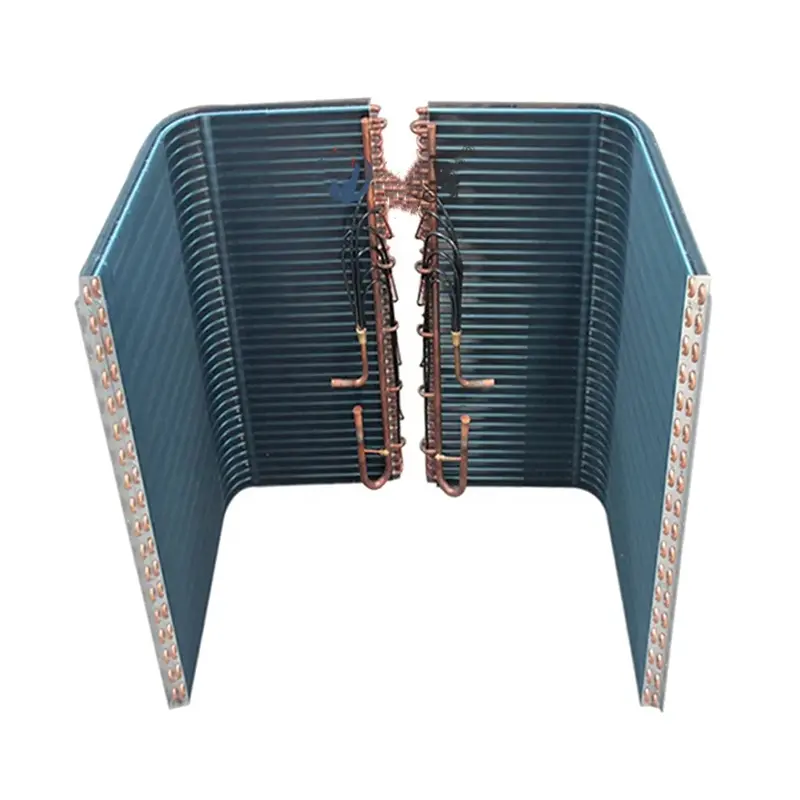

Cooling Refrigerator Finned Tube Type Wire Tube Condenser

The finned-tube condenser is a highly efficient heat exchange device. Its core principle is to enhance heat exchange efficiency by increasing the heat dissipation area. It is mainly composed of heat exchange tubes and fins. Copper or aluminum tubes are commonly used as heat exchange tubes, while aluminum or steel sheets are used to make the fins, which are closely bonded through processes such as tube expansion and welding.

Thanks to its large heat dissipation area, the finned-tube condenser can quickly transfer heat to the air. Moreover, it features a compact structure, allowing for flexible adaptation to various spatial layouts. It is widely used in air conditioning systems, refrigerators, automotive cooling systems, as well as various industrial cooling equipment.

product details

Core functions and advantages

● Superior cooling efficiency
Corrugated fin + copper tube spiral structure, heat dissipation area increased by 30%, cooling faster

● long-term durability
Blue film/hydrophilic aluminum foil coating is optional, resistant to salt spray corrosion, suitable for humid environments

● Accurate compatibility
Cover mainstream brands (Haier/Midea/Gree,etc.) replacement models, provide compatibility inquiry form

● Energy saving and Environmental protection
Suitable for R290/R32 and other new environmental refrigerant, through CE, RoHS certification

Product description

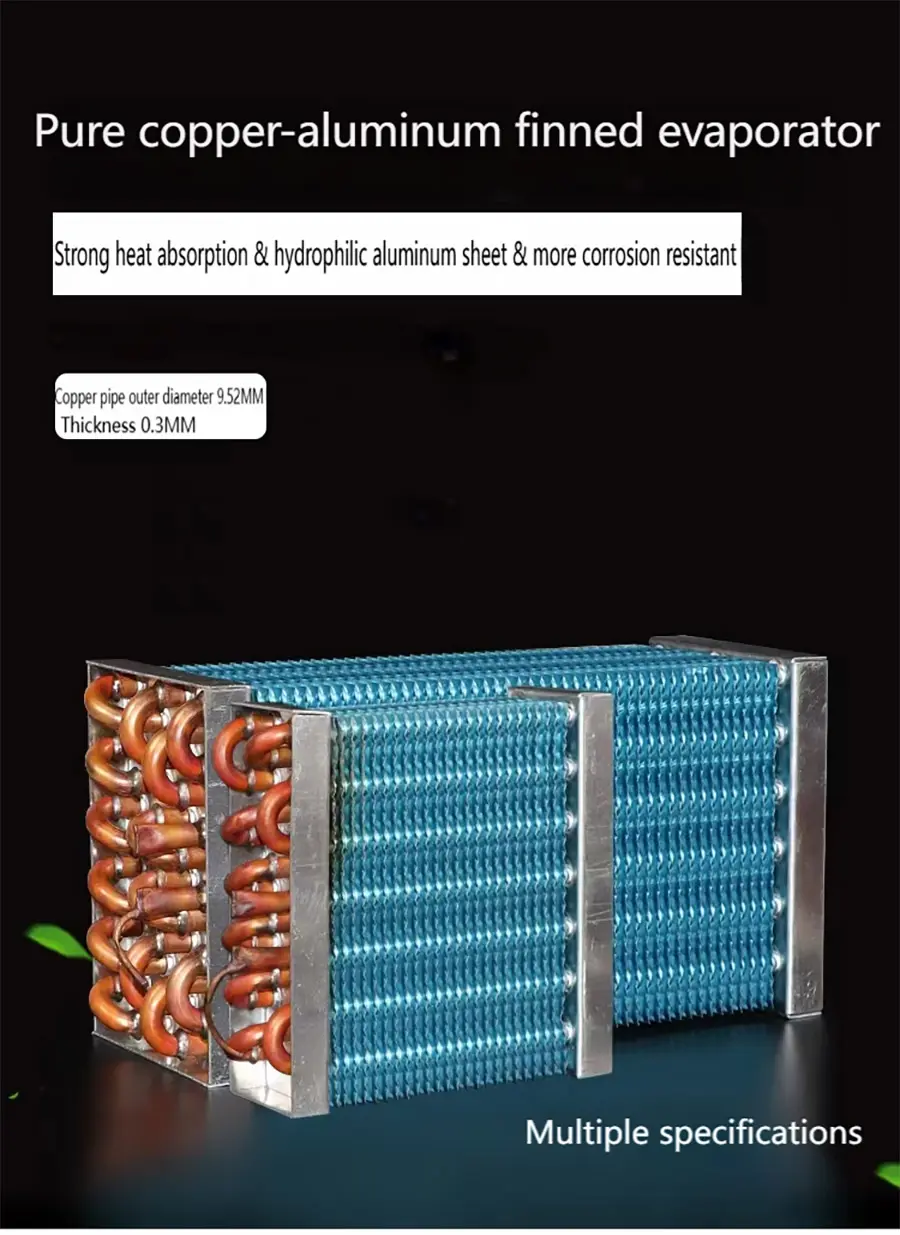

1. Structure and material
Pipe: seamless copper pipe (wall thickness 0.5mm±0.05) or high-efficiency aluminum pipe
Fin:Ultra-thin aluminum foil (thickness 0.1-0.15 mm), optional ordinary/ hydrophilic/ blue film coating
Frame: rust-proof aluminum alloy side plate, high mechanical strength

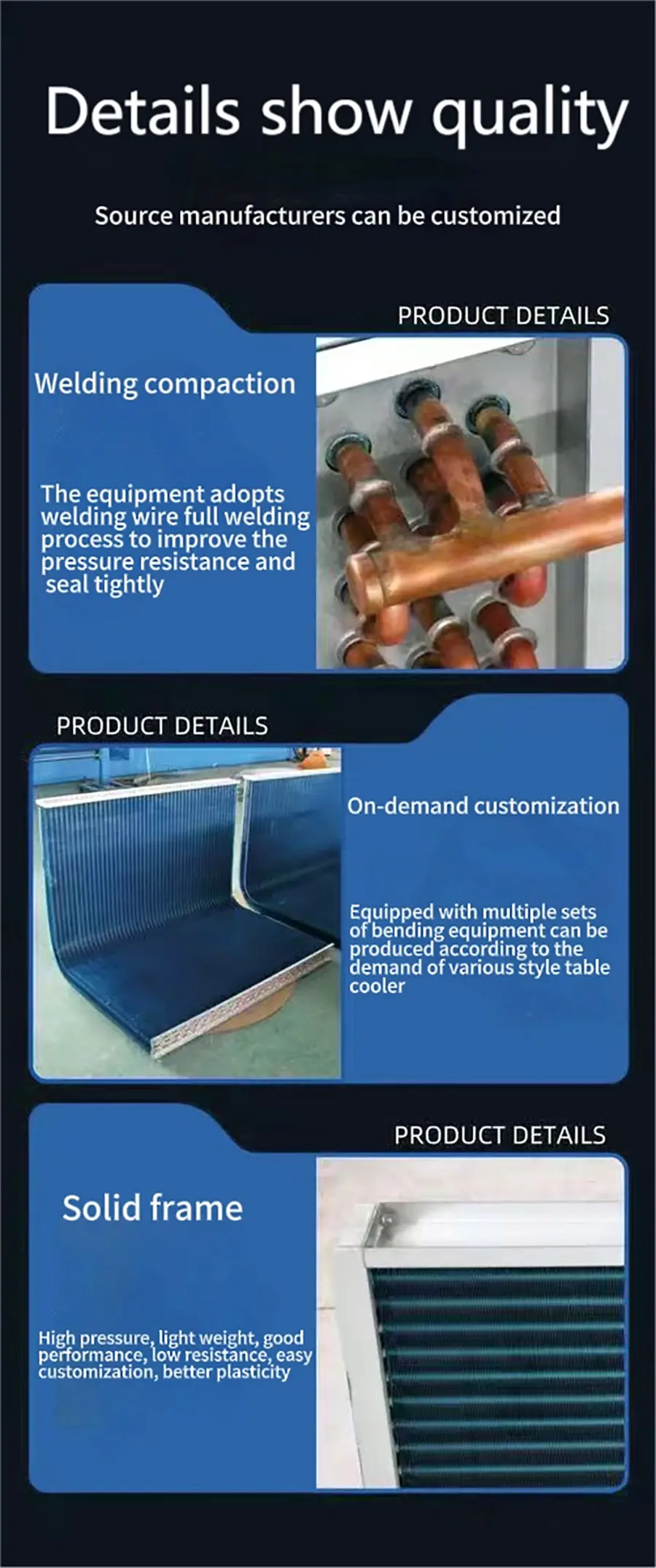

2. Key processes
Tube expansion technology: Hydraulic tube expansion ensures tight contact of the tube segments and reduces thermal resistance
Welding process: nitrogen protected welding, no oxidation solder joint
Cleanliness: high-pressure helium leak detection before delivery, dust content ≤0.1mg/m³

3. Application scenario
Home refrigerator/freezer back condensing system
Commercial refrigeration equipment (beverage cabinet, ice cream display cabinet)
Replace the air conditioner outdoor unit condenser

Technical parameter

Parameter item	Standard Specifications	Customizable range
Pipe diameter	Φ6mm/Φ8mm	FL-2025A/B/C(optional)
Fin spacing	3.5mm	R22/R410A/R134a
Working pressure	4.2MPa (Copper tube)	Max 5.0MPa
Temperature range	-40℃~+150℃	-50℃~+180℃
Surface coating	Bare aluminum/hydrophilic aluminum foil (default)	Blue film/epoxy resin coating
Weight per piece	2.5kg(600x300mm example)	Size adjustment

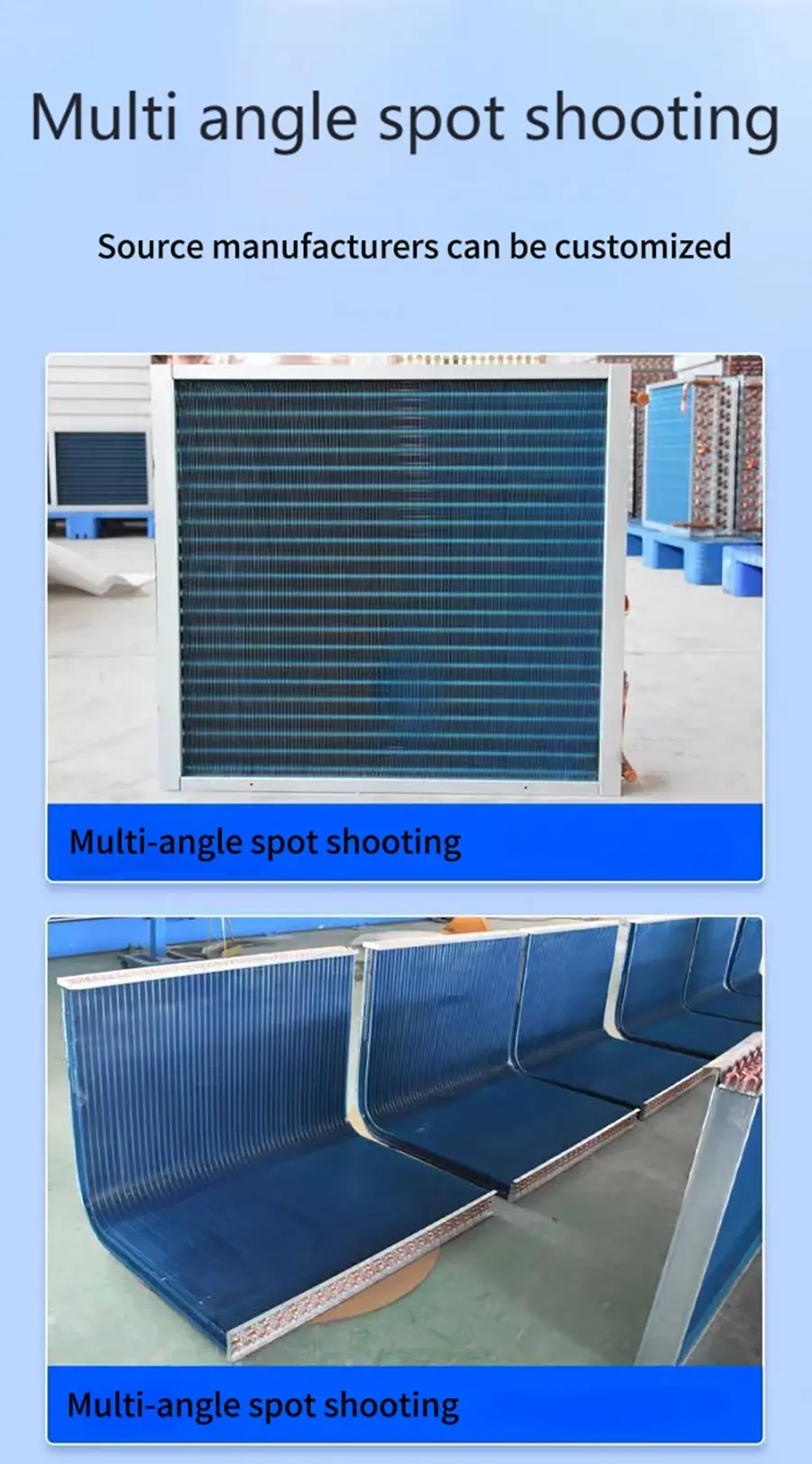

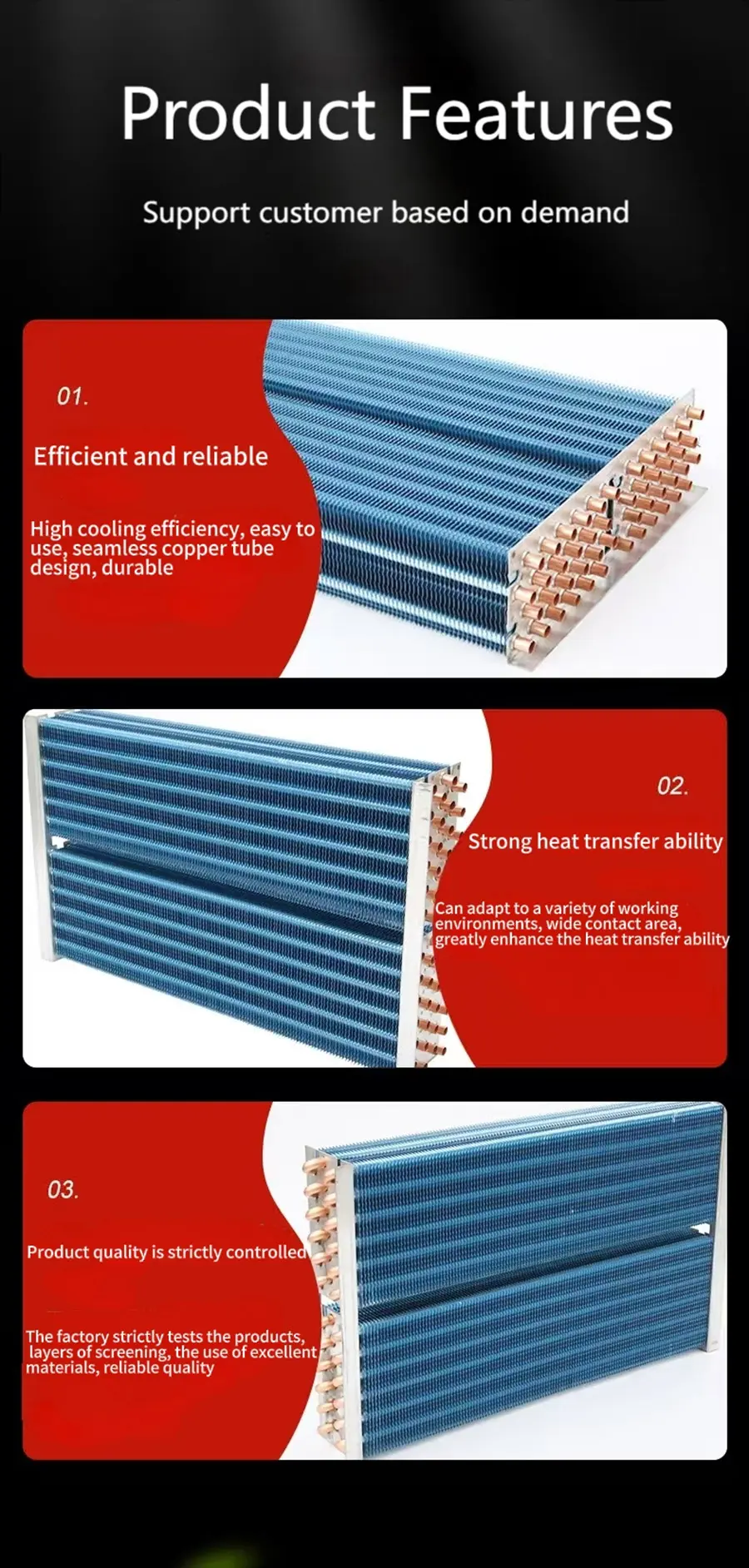

Product features

Packing and delivery

In order to better ensure the safety of your goods, we will provide you with professional, environmentally friendly, convenient and efficient packaging services.
