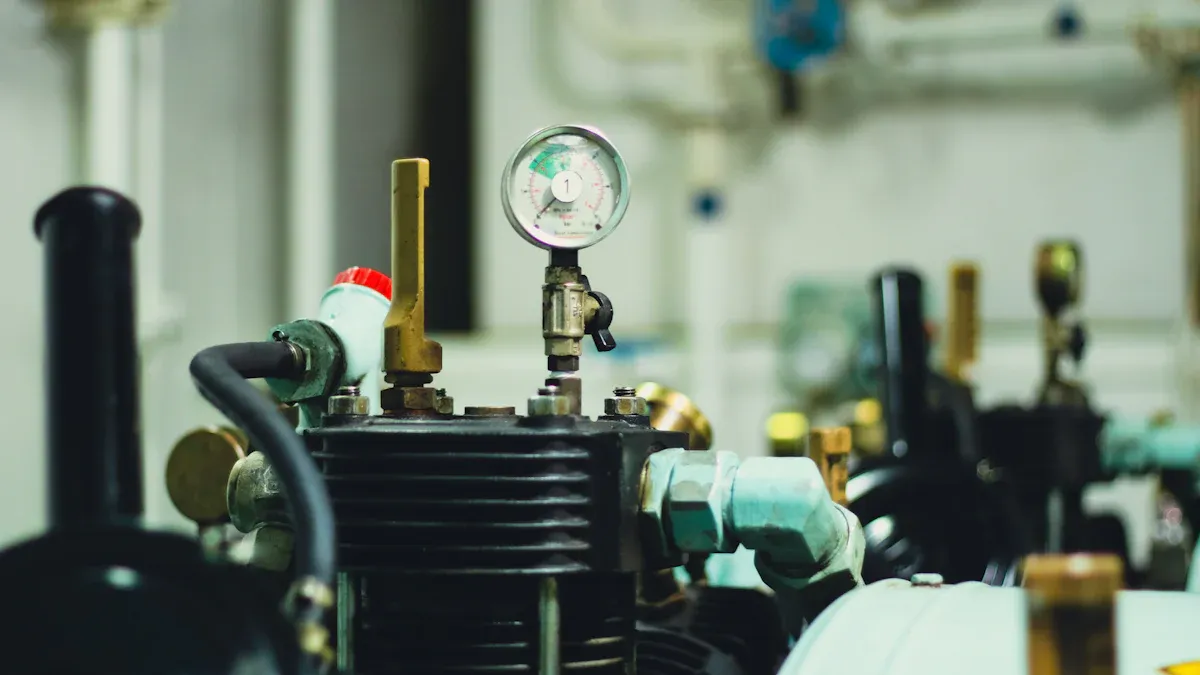

The Role of Capacitors in Refrigeration Compressor Start-Up and Operation

A refrigeration capacitor delivers the critical electrical boost that a compressor motor needs to start and run smoothly. This component stores and releases energy quickly, giving the motor enough power to overcome resistance at start-up. When a system lacks a properly functioning capacitor, compressors may fail to start or operate inefficiently. Technicians who understand how capacitors work can prevent unexpected breakdowns and keep refrigeration systems running reliably.

Proper maintenance of capacitors reduces the risk of costly compressor failures.

Key Takeaways

• Refrigeration capacitors provide the electrical boost needed for compressor motors to start and run efficiently, preventing start-up failures.
• Start Capacitors deliver a strong, short burst of energy to overcome motor resistance at start-up, then disconnect to avoid overheating.
• Run Capacitors stay connected during operation to maintain smooth motor function, improve energy efficiency, and reduce wear.
• Regular inspection and timely replacement of capacitors prevent costly compressor damage and extend system lifespan.
• Common signs of capacitor failure include compressor not starting, humming noises, tripped breakers, and visible damage like bulging or leaking.
• Using the correct capacitor type and rating is essential for safe, reliable compressor performance and to avoid motor damage.
• Professional maintenance ensures safe handling of capacitors and accurate diagnosis, but simple visual checks can help homeowners spot issues early.
• Routine preventive care, including annual capacitor testing, reduces energy costs, prevents downtime, and keeps refrigeration systems running smoothly.

Why the Refrigeration Capacitor Is Essential for Compressor Start-Up

Overcoming Initial Motor Resistance

Providing Starting Torque

Refrigeration compressors face a significant challenge at start-up. The motor must overcome both mechanical inertia and internal resistance to begin rotating. Single-phase induction motors, commonly used in refrigeration systems, cannot generate enough starting torque on their own. The refrigeration capacitor addresses this problem by creating a phase shift between the start and run windings. This phase shift produces a rotating magnetic field, which increases starting torque by up to 500%. The capacitor stores and releases a surge of electrical energy at the moment of start-up, giving the motor the boost it needs to turn the compressor shaft. Without this initial torque, the motor may only hum or fail to start entirely.

Aspect	Explanation
Start Capacitor Function	Stores and releases a large electrical charge at motor startup, providing a voltage boost.
Phase Shift Creation	Works with the auxiliary winding to create a rotating magnetic field for high starting torque.
Mechanical Load Handling	Enables the motor to start even under high load, such as high head pressure in compressors.
Intermittent Use	Disconnects after the motor reaches about 70-80% speed to prevent overheating.

Ensuring Reliable Motor Rotation

The refrigeration capacitor ensures that the compressor motor rotates in the correct direction every time. By energizing the auxiliary winding with a phase-shifted current, the capacitor guarantees that the motor can self-start regardless of the rotor's initial position. This reliable rotation is critical for compressors, which often start under varying load conditions. The capacitor's role in providing a consistent and powerful start prevents the motor from stalling or reversing, both of which can cause system failures.

Preventing Start-Up Failures

Avoiding Excessive Current Draw

During start-up, compressors require a high inrush current. If the motor does not receive enough starting torque, it draws excessive current while trying to overcome resistance. The refrigeration capacitor helps manage this current by delivering a controlled surge only during the initial phase. This reduces the risk of locked rotor conditions, where the motor cannot turn and continues to draw high current. By limiting the duration and magnitude of the inrush current, the capacitor protects the electrical system from overloads and prevents nuisance tripping of circuit breakers.

Tip: Using a properly rated start capacitor lowers the initial current draw, improving start reliability and reducing stress on electrical components.

Protecting Motor Windings

Motor windings are vulnerable to overheating if the compressor struggles to start. Prolonged high current can damage insulation and shorten the motor's lifespan. The refrigeration capacitor minimizes this risk by ensuring the motor starts quickly and efficiently. It disconnects from the circuit once the motor reaches operating speed, preventing overheating and further protecting the windings. Regular inspection and timely replacement of capacitors help maintain this protective function. Age, voltage fluctuations, and environmental factors can degrade capacitor performance, so maintenance is essential for long-term compressor health.

• Common causes of start-up failure include:
  • Prolonged operation of the start capacitor due to relay failure.
  • Incorrect capacitor ratings.
  • Age-related degradation.
  • Voltage surges and poor ventilation.
  • Dust accumulation and electrical imbalance.

A reliable refrigeration capacitor reduces these risks, ensuring the compressor starts smoothly and operates efficiently from the very first cycle.

The Role of the Refrigeration Capacitor in Continuous Operation

Maintaining Motor Efficiency

Regulating Electrical Flow

A refrigeration compressor operates for extended periods, often cycling on and off many times each day. During continuous operation, the refrigeration capacitor—specifically the run capacitor—remains connected to the motor circuit. This component creates a phase shift in the power supply, which stabilizes the current flow and improves the motor's power factor. The phase shift produces a lagging magnetic field that smooths motor operation and reduces voltage fluctuations. By continuously storing and releasing electrical energy, the run capacitor maintains a steady current. This steady flow reduces strain on the motor and prevents sudden surges or drops in voltage. As a result, the compressor runs more smoothly and avoids unnecessary wear.

Note: A stable electrical supply helps prevent nuisance tripping and protects sensitive electronic controls within the refrigeration system.

Reducing Power Consumption

Efficient energy use is a priority for both commercial and residential refrigeration systems. The run capacitor plays a direct role in lowering power consumption. By maintaining a balanced phase relationship between the start and run windings, the capacitor ensures that the motor draws only the amount of current it needs. This balance reduces wasted energy and keeps the motor from overheating. Over time, lower energy consumption translates to reduced utility costs and less environmental impact. Operators who monitor and maintain their run capacitors can expect consistent performance and improved energy efficiency from their refrigeration equipment.

Enhancing System Reliability

Preventing Overheating

Continuous operation places significant demands on compressor motors. The refrigeration capacitor helps regulate voltage levels and reduces power fluctuations, which keeps the motor temperature within safe limits. When the capacitor functions correctly, it prevents the motor from drawing excessive current, a common cause of overheating. This protection is especially important during periods of heavy use or high ambient temperatures. By preventing overheating, the capacitor safeguards the motor windings and insulation, reducing the risk of premature failure.

Extending Compressor Lifespan

System reliability depends on the health of every component, especially the capacitor. The refrigeration capacitor provides both the initial surge for startup and the steady supply needed for ongoing operation. Proper capacitor function ensures smooth compressor cycles, prevents frequent starts and stops, and minimizes component wear. Regular maintenance and timely replacement of capacitors help avoid system damage and maintain energy efficiency. Scientific studies using accelerated life testing and reliability modeling show that understanding and predicting capacitor lifespan is crucial for dependable compressor operation. When technicians address capacitor issues promptly, they extend the overall lifespan of the compressor and reduce the likelihood of costly repairs.

Tip: Schedule routine inspections of capacitors to catch early signs of wear and prevent unexpected system downtime.

Benefit of Reliable Capacitor	Impact on Compressor System
Stable voltage regulation	Smooth, efficient operation
Reduced component wear	Fewer breakdowns and longer lifespan
Lower energy consumption	Cost savings and environmental benefit

What Is a Refrigeration Capacitor and How Does It Work?

Basic Function and Energy Storage

Storing and Releasing Electrical Energy

A refrigeration capacitor plays a vital role in the operation of compressor motors. It stores electrical energy by creating a potential difference between two metallic plates separated by a dielectric material. When the compressor motor needs extra power, the capacitor releases this stored energy. This quick discharge provides the voltage boost required for the motor to start or run efficiently. The process of charging and discharging ensures that the motor reaches the desired speed and maintains system efficiency.

1. The capacitor consists of two conductive plates with a dielectric material between them.
2. When connected to a power source, it stores electrical energy.
3. The capacitor releases this energy at a controlled rate, supporting the motor during demanding periods.
4. It creates a phase shift in the alternating current, which helps generate a rotating magnetic field.
5. This function improves motor efficiency and reduces wear.

Smoothing Power Delivery to the Motor

The refrigeration capacitor also smooths power delivery to the compressor motor. By continuously storing and releasing energy, it stabilizes the current flow. This steady supply prevents sudden voltage drops or surges that could damage the motor. The capacitor’s ability to regulate electrical flow helps the motor run smoothly, reduces strain, and extends its lifespan. Reliable power delivery is essential for maintaining consistent cooling performance in refrigeration systems.

Note: A well-functioning capacitor protects the motor from electrical fluctuations and supports long-term reliability.

Types of Refrigeration Capacitors

Start Capacitors

Start capacitors provide a high-energy surge to help the compressor motor begin turning. These capacitors only operate during the initial start-up phase. They have higher capacitance values and deliver a strong voltage boost for a short period. Once the motor reaches about 70-80% of its full speed, a relay disconnects the start capacitor from the circuit. This design prevents overheating and ensures the capacitor does not remain active longer than necessary.

Run Capacitors

Run capacitors support the motor after it has started. They remain connected during the entire operation of the compressor. Run capacitors have lower capacitance than start capacitors but are built for continuous use. Their main function is to maintain the correct phase relationship between the motor windings, which keeps the motor running efficiently and quietly. By stabilizing the current, run capacitors reduce energy consumption and help preVent Motor overheating.

Capacitor Type	Function	Application	Characteristics
Start Capacitor	Provides a high-energy surge for initial motor start-up	Used only during the motor's starting phase	Higher capacitance, designed for short-term use, not continuously in the circuit
Run Capacitor	Maintains motor's electrical phase during operation	Keeps the motor running smoothly after start	Lower capacitance than start capacitors, designed for continuous use
Dual Run Capacitor	Combines start and run capacitor functions	Used in systems needing both starting and running capacitance	Has three terminals (common, compressor fan, compressor motor), serves dual purpose

Tip: Identifying the correct type of capacitor for each application ensures optimal compressor performance and longevity.

Start Capacitors vs. Run Capacitors in Refrigeration Compressors

Start Capacitors: Purpose and Operation

Providing Initial Phase Shift

Start capacitors play a critical role in the initial moments of compressor operation. They deliver a high-capacitance electrical boost that creates a strong phase shift—often close to 90 degrees—between the start and main windings of the motor. This phase shift generates the high starting torque needed to overcome the inertia and resistance of a stationary compressor. The start capacitor’s large capacitance value, typically ranging from 70 to 120 microfarads (µF), ensures the motor receives enough current to begin rotating smoothly.

Disconnection After Start-Up

Once the compressor motor reaches about 70-80% of its full speed, the start capacitor’s job is complete. A centrifugal switch or relay disconnects the start capacitor from the circuit. This step prevents the capacitor from overheating, as it is not designed for continuous operation. The brief engagement of the start capacitor protects both the motor and the capacitor itself, ensuring reliable start-up performance without risk of damage.

Tip: Start capacitors only operate for a few seconds during each start cycle, making them essential for motors that require high starting torque.

Run Capacitors: Continuous Support

Maintaining Phase Balance

Run capacitors remain connected to the motor circuit throughout the entire operation of the compressor. They provide a smaller, steady capacitance—usually between 7 and 9 µF—that maintains a continuous phase shift between the motor windings. This phase balance improves the efficiency of the motor, reduces energy loss, and ensures smooth, quiet operation. By optimizing the phase angle, run capacitors help the compressor maintain consistent performance during long cycles.

Differences from Start Capacitors

Start and run capacitors differ in several key aspects. Start capacitors offer high capacitance for a short duration, while run capacitors provide lower capacitance for continuous use. The following table highlights these differences:

Aspect	Start Capacitor	Run Capacitor
Capacitance	High (70-120 µF)	Low (7-9 µF)
Function	Delivers a strong electrical boost for starting torque	Maintains phase balance and efficiency during operation
Connection Mode	Engaged only during start-up, then disconnected	Remains in circuit continuously
Operation Duration	Momentary	Continuous
Purpose	Overcomes starting resistance and inertia	Improves efficiency and reduces energy loss

Identifying Refrigeration Capacitor Types

Physical Appearance and Labeling

Technicians can identify capacitor types by examining their physical features and labels. Single capacitors usually have two terminals, while dual capacitors have three terminals labeled C (Common), FAN, and HERM (Compressor). Capacitors display their capacitance in microfarads (µF) and voltage ratings, such as 370V or 440V, on the case. The shape—round or oval—does not affect function but may influence how the capacitor fits in the unit. Wiring colors often follow common standards, but technicians should always verify with the wiring diagram.

Capacitor Type	Number of Terminals	Terminal Labels	Typical Use
Single Run Capacitor	2	C and FAN or HERM	One motor (fan or compressor)
Dual Run Capacitor	3	C, FAN, HERM	Fan and compressor in one unit

Note: Always power off and discharge capacitors before handling to prevent electrical shock.

Application in Compressor Circuits

In refrigeration compressor circuits, the start capacitor connects in parallel with the start winding and only engages during start-up. The run capacitor connects in parallel with the run winding and remains active throughout operation. Dual run capacitors serve both the compressor and fan motor, simplifying wiring and saving space. Proper identification and installation of each refrigeration capacitor type ensure safe, efficient compressor performance.

How the Refrigeration Capacitor Functions in Compressor Circuits

Electrical Pathways and Circuit Placement

Start and Run Windings Explained

Compressor motors in refrigeration systems use two main windings: the start winding and the run winding. The start winding has lower resistance and works with the capacitor to generate the phase shift needed for starting torque. The run winding carries the main current during normal operation. By energizing both windings in a specific sequence, the motor achieves reliable rotation and efficient performance.

Capacitor Position in the Circuit

Technicians place capacitors in series with the start winding. This arrangement creates the necessary phase shift for starting torque. CBB60 capacitors, commonly used in these applications, provide the phase shift for both starting and running the motor. Permanent Split Capacitor (PSC) motors keep the start winding and its capacitor connected at all times, which influences start current and overall performance. Proper placement ensures efficient starts, reduces surge current, and supports smooth operation. Incorrect placement or selection can lead to inefficient operation, overheating, or even failure to start.

Note: The correct position of the capacitor in the circuit directly affects compressor reliability and energy efficiency.

Sequence of Operation

Start-Up Phase

The start-up phase begins when the system calls for cooling. At this moment, a start capacitor connects in series with the start winding. This connection creates a strong phase shift, energizing the start winding poles ahead of the run winding poles. The result is high starting torque, which allows the compressor motor to overcome inertia and begin turning. Start capacitors are large electrolytic types designed for momentary use. They cannot remain energized for long periods without risk of damage.

Transition to Running Phase

Once the motor reaches about 75% of its full speed, a centrifugal switch or relay disconnects the start capacitor. The start winding then becomes idle. A run capacitor, smaller and designed for continuous operation, remains in the circuit. It continues to provide a phase shift, improving efficiency and maintaining smooth running torque. Some modern compressors use only a run capacitor in a Permanent Split Capacitor configuration, which eliminates the need for a start capacitor in systems with lower starting torque requirements.

Tip: The transition from start-up to running phase protects both the motor and the capacitor from overheating and ensures long-term reliability.

Impact on Performance and Efficiency

Power Factor Correction

Capacitors improve the power factor of compressor motors. By providing a phase shift, they help align the voltage and current waveforms. This alignment reduces wasted energy and lowers utility costs. A higher power factor means the motor uses electrical power more effectively, which benefits both performance and efficiency.

Reducing Electrical Noise

Capacitors also help reduce electrical noise in the system. They smooth out voltage fluctuations and prevent sudden surges or drops. This stability protects sensitive electronic controls and extends the lifespan of the compressor. Reliable power delivery ensures consistent cooling and minimizes the risk of nuisance tripping or component failure.

Benefit	Description
Power Factor Correction	Reduces wasted energy and improves efficiency
Noise Reduction	Protects electronics and ensures stable operation

Recognizing and Addressing Refrigeration Capacitor Failure

Common Symptoms of Failure

Compressor Fails to Start

A refrigeration system often gives clear signs when a capacitor begins to fail. One of the most noticeable symptoms is the compressor not starting at all. The system may remain silent or attempt to start without success. In many cases, the outdoor condensing unit will not engage, even though the Thermostat calls for cooling. This issue can occur after ruling out other electrical problems, making it a strong indicator of capacitor trouble.

Humming or Clicking Sounds

Unusual noises serve as another warning sign. Humming or clicking sounds from the outdoor unit suggest the compressor struggles to start due to a weak or failing capacitor. These sounds indicate the motor receives power but cannot turn over, causing it to stall. Sometimes, the system may experience delayed starts or frequent on/off cycling, known as short cycling.

Tripped Breakers or Blown Fuses

Electrical issues often accompany capacitor failure. Tripped circuit breakers or blown fuses can result from the compressor drawing excessive current while attempting to start. This situation places stress on the electrical system and may lead to further damage if not addressed promptly.

Tip: Visual inspection may reveal bulging, leaking, or corroded capacitors, as well as powdery residue on the casing.

Other common symptoms include:

• Weak airflow from vents
• Higher energy bills
• Inconsistent cooling with hot spots
• Fan motor failures
• Potential damage to wiring and components

Consequences of a Faulty Refrigeration Capacitor

Overheating and Motor Burnout

A faulty capacitor forces the compressor motor to work harder. The motor may overheat as it struggles to start or run properly. Over time, this stress can damage the motor windings, leading to burnout or complete compressor failure. Hard starting and increased electrical stress further accelerate wear on the system.

Increased Energy Consumption

When A Capacitor fails, the system loses efficiency. Motors must work harder to maintain operation, resulting in higher energy consumption. Utility bills may rise as the compressor cycles more frequently or runs for longer periods. Neglecting capacitor issues can cause significant damage to the compressor and may even mimic symptoms of compressor failure, leading to misdiagnosis.

Note: Timely replacement of capacitors helps prevent compressor damage and extends system life.

Safety Risks and System Downtime

Electrical Hazards

Capacitors store high voltages, often between 370 and 600 volts. Mishandling a charged capacitor can cause severe electric shock. Arcing from a charged capacitor may also ignite flammable refrigerants, creating a fire hazard. Swollen or leaking capacitors can rupture suddenly, especially during periods of heavy use or high temperatures.

Preventing Further Damage

Improper installation or DIY repairs increase the risk of injury and system damage. Incorrect handling can void warranties and lead to expensive repairs. Emergency repairs often take longer during peak demand, resulting in extended downtime. Regular maintenance, including annual tune-ups and capacitor testing, helps detect weakening capacitors before failure. Professional HVAC technicians have the training and certification needed to handle capacitors safely and ensure reliable system operation.

Callout: Routine maintenance and timely capacitor replacement reduce the risk of breakdowns, improve energy efficiency, and minimize costly downtime.

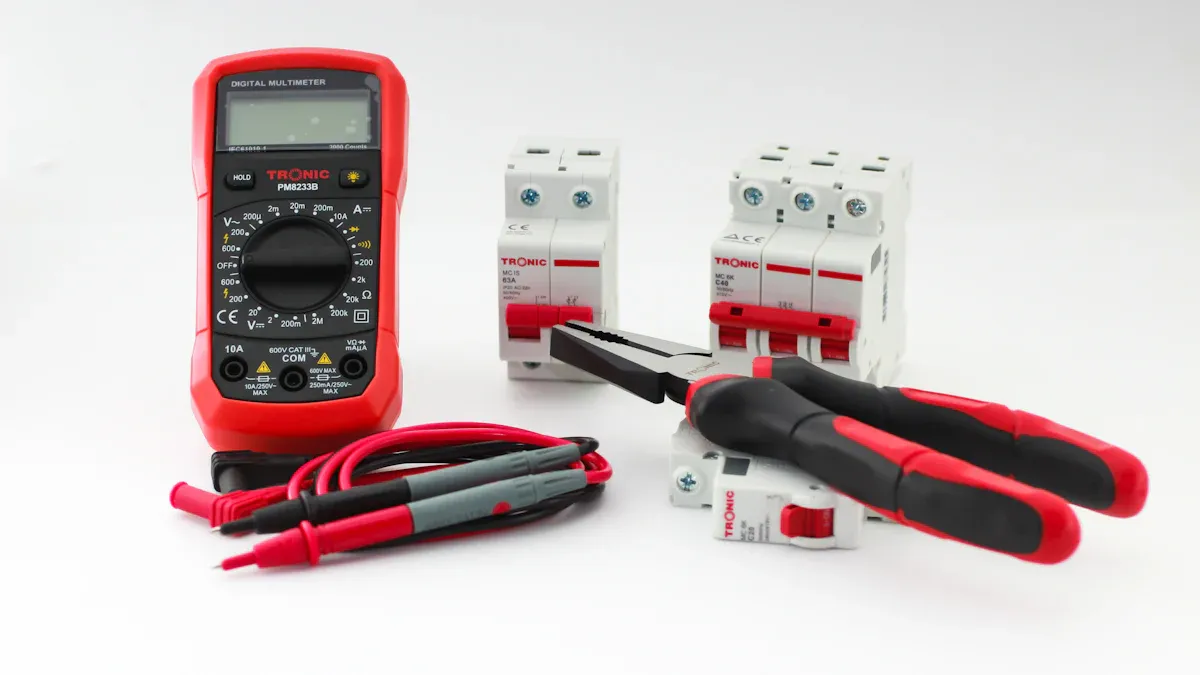

Testing, Diagnosing, and Replacing a Refrigeration Capacitor

Visual Inspection Methods

Bulging, Leaking, or Burned Capacitors

Technicians often begin diagnosis with a careful visual inspection. They look for physical signs that indicate a failing capacitor. Bulging of the capacitor casing stands out as a clear warning. Leaking substances around the terminals or body also signal trouble. Burn marks or discoloration on the surface suggest overheating or internal failure. Always replace a capacitor that shows visible damage, even if electrical tests appear normal. These visual cues provide a quick and reliable way to identify faulty components before moving to electrical testing.

• Inspect the capacitor for:
  • Bulging or swelling of the casing
  • Leaking oil or residue
  • Burn marks or discoloration

Tip: Always discharge the capacitor safely before touching or removing it to prevent electric shock.

Signs of Corrosion or Damage

Corrosion around the terminals or mounting points can disrupt electrical connections. Rust, greenish deposits, or pitting on the metal parts often point to moisture intrusion or chemical exposure. Deformation or cracks in the casing further indicate that the capacitor may not function properly. These signs, when present, warrant immediate replacement to avoid system failure.

Using a Multimeter for Testing

Capacitance Measurement

A multimeter provides a precise way to test capacitor health. First, remove the capacitor from the circuit and fully discharge it. Set the multimeter to capacitance mode, then connect the probes to the terminals. The display will show the measured capacitance. Compare this value to the rating printed on the capacitor. A reading within 10-20% of the rated value is acceptable. A significant difference means the capacitor is likely faulty.

Continuity and Resistance Checks

Resistance testing helps confirm the capacitor’s condition. With the capacitor removed and discharged, set the multimeter to a resistance range such as 1kΩ. Connect the probes to the terminals. A healthy capacitor will show a resistance that rises steadily toward infinity, indicating it is charging. A constant low resistance points to a shorted capacitor, while a constant high resistance suggests an open circuit. These tests help technicians quickly identify internal faults.

Safe Replacement Procedures

Discharging the Capacitor

Before handling, always discharge the capacitor to eliminate stored voltage. Use an insulated screwdriver or a resistor to bridge the terminals. This step ensures safety and prevents accidental shock.

Selecting the Correct Replacement

Choose a replacement capacitor with the same capacitance and voltage ratings as the original. Check the physical size and terminal configuration to ensure a proper fit. Using the correct part maintains system performance and reliability.

Installation Tips

Install the new capacitor securely, making sure all connections are tight and free of corrosion. Double-check wiring against the system diagram. After installation, restore power and observe the compressor’s operation to confirm successful replacement.

Note: Proper testing and careful replacement protect both the technician and the refrigeration system from further issues.

Preventive Maintenance and Best Practices for Refrigeration Capacitors

Regular Inspection Schedules

Seasonal Maintenance Checks

Annual inspections of capacitors form a critical part of preventive maintenance for both commercial and residential refrigeration systems. Technicians recommend scheduling these checks before the start of the cooling season. During these visits, professionals use specialized tools to safely discharge and test capacitors, identifying early signs of wear or damage that may not be visible to the naked eye. Regular inspections help prevent unexpected failures and keep systems running efficiently during periods of high demand.

Equipment Type	Maintenance Task	Frequency	Recommendation Reason
Commercial Refrigerators	Capacitor Check	Once a Year	Low capacitor value indicates out-of-spec conditions that can cause burnout
Residential Air Conditioners	Capacitor Check	Once a Year	Low capacitor value indicates out-of-spec conditions that can cause burnout

Early Warning Signs

Early detection of capacitor issues can prevent costly repairs. Signs such as bulging, leaking, or discoloration on the capacitor casing signal potential failure. Unusual noises, weak airflow, or inconsistent cooling also indicate problems. Including capacitor inspection in regular maintenance routines ensures technicians catch these warning signs before they escalate.

Tip: Schedule professional inspections at least every two years, but annual checks provide the best protection against system downtime.

Choosing Quality Replacement Parts

OEM vs. Aftermarket Refrigeration Capacitors

Selecting the right replacement capacitor is essential for system reliability. Original Equipment Manufacturer (OEM) parts guarantee compatibility and meet strict quality standards. Aftermarket options may offer cost savings, but they must match the original specifications exactly to avoid performance issues. Always verify certifications and consult with a trusted supplier when choosing between OEM and aftermarket capacitors.

Importance of Correct Ratings

Using the correct capacitor ratings protects the compressor motor from inefficiency and damage. The voltage rating must meet or exceed the equipment’s operational voltage, such as 370VAC or 450VAC. The capacitance value should match the original component, with a typical tolerance of ±5% or ±10%. Physical size, terminal type, and environmental ratings also play a role in ensuring a proper fit and safe operation.

• Key criteria for selecting replacement capacitors:
  • Voltage rating equal to or greater than the original
  • Exact capacitance value within specified tolerance
  • Proper physical dimensions and terminal type
  • Certifications such as UL or CE for safety and reliability
  • Suitability for the operating environment (temperature, humidity, altitude)

Criteria	Details & Importance
Voltage Rating	Must be equal or greater than motor nameplate rating to avoid exponential reduction in capacitor life.
Capacitance Value	Must match the motor's nominal rating exactly; tolerance typically ±6%. Using incorrect capacitance causes motor inefficiency, noise, and damage.
Certifications & Standards	Capacitors should meet industry standards such as Tecumseh H-115, IEC-60252-1, and EIA-456-A for reliability and longevity.

Note: Never use a capacitor with a lower voltage rating than required by the system.

Professional vs. DIY Maintenance

When to Call a Technician

Professional maintenance offers thorough diagnostics and ensures safe handling of electrical components. Technicians recommend scheduling service if the unit fails to start after basic checks, continues to produce humming noises, or shows signs of additional faults. Professionals possess the expertise to identify complex issues and prevent further damage or safety hazards.

Basic Tasks for Homeowners

Homeowners with electrical experience can perform simple maintenance tasks. These include turning off power at the main breaker, safely discharging the capacitor, and visually inspecting for signs of damage. Replacing a capacitor involves documenting wire connections, testing with a multimeter, and installing a new component that matches the original specifications. DIY maintenance suits those confident in handling electrical parts, but safety remains the top priority.

Alert: If uncertainty exists about any maintenance step, always consult a qualified technician to avoid injury or equipment damage.

---

Regular maintenance and timely replacement of capacitors help prevent unexpected compressor failures and costly downtime. Technicians who inspect for bulging, leaking, or burnt odors can identify problems early and protect system performance. Users who understand basic troubleshooting steps, such as recognizing unusual noises or inefficient cooling, can make informed decisions about when to seek professional help. This proactive approach supports long-term compressor reliability, reduces energy costs, and ensures consistent cooling.

FAQ

What does a refrigeration capacitor do?

A refrigeration capacitor stores and releases electrical energy. It provides the necessary boost for compressor motors to start and run efficiently. This component helps maintain stable operation and extends the lifespan of the compressor.

How can someone tell if a refrigeration capacitor has failed?

Technicians often notice symptoms such as a compressor that will not start, humming noises, or tripped breakers. Visual signs include bulging, leaking, or burned capacitor casings. A multimeter test confirms the diagnosis.

Can a refrigeration system run without a capacitor?

No, most single-phase compressor motors require a capacitor for reliable start-up and efficient operation. Without a working capacitor, the compressor may fail to start or could overheat quickly.

How often should refrigeration capacitors be checked?

Professionals recommend annual inspections. Regular checks help detect early signs of wear or failure. Preventive maintenance ensures the system operates efficiently and avoids unexpected breakdowns.

What is the difference between a start capacitor and a run capacitor?

Start Capacitor	Run Capacitor
Provides high starting torque	Maintains efficiency during operation
Used only at start-up	Remains in circuit continuously

Is it safe to replace a capacitor without professional help?

Safety Alert: Capacitors store high voltage. Only individuals with proper training and safety equipment should attempt replacement. When in doubt, contact a qualified technician.

What happens if the wrong capacitor rating is used?

Using an incorrect rating can cause motor inefficiency, overheating, or even permanent damage. Always match the voltage and capacitance values to the manufacturer’s specifications for safe and reliable operation.
