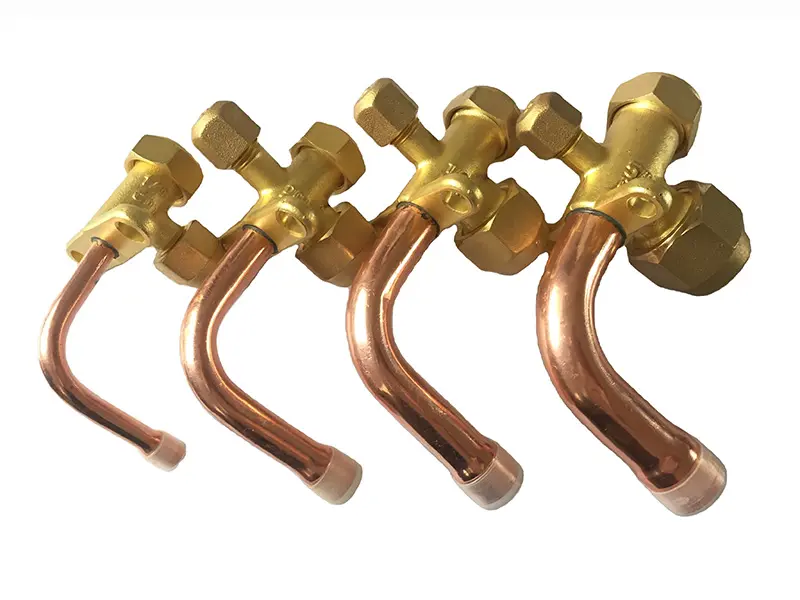

1/4" 3/8" 1/2" 5/8" Copper Split Service Valve L Bend Gas Stop AC Outdoor Brass Air Conditioner Parts

The air conditioning valve ‌ is a key component of the air conditioning system used to control, regulate or block the flow of fluids (such as water, air, and refrigerant). It accurately manages the flow rate, pressure, and direction of the medium by mechanical or electric means to meet the cooling/heating requirements, ensure the safe operation of the system, and improve energy efficiency.

product details

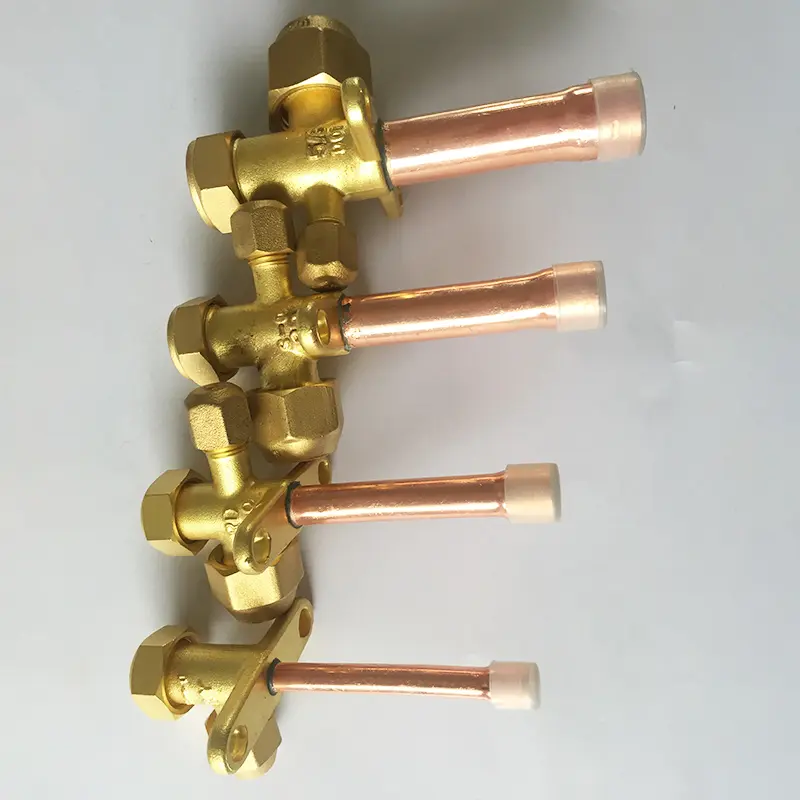

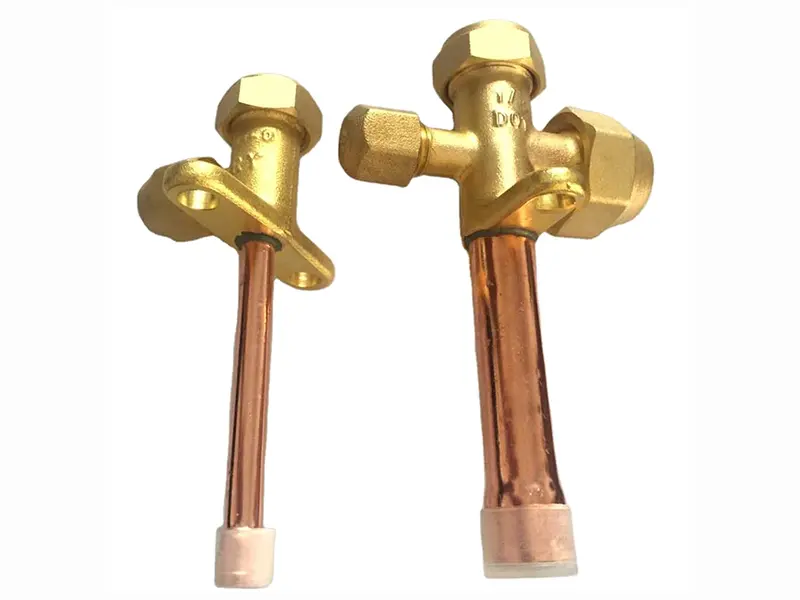

Product Detail

Material：Copper and brass

Refrigerant: R22 or R410

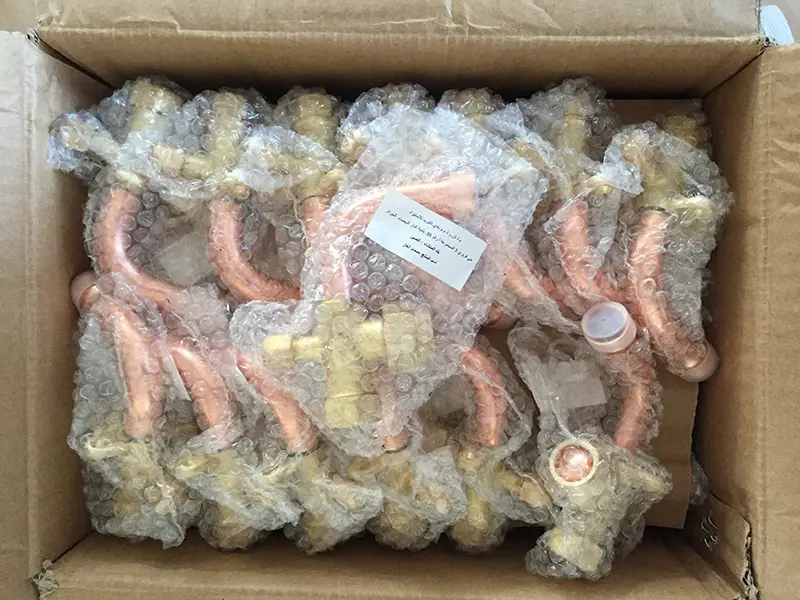

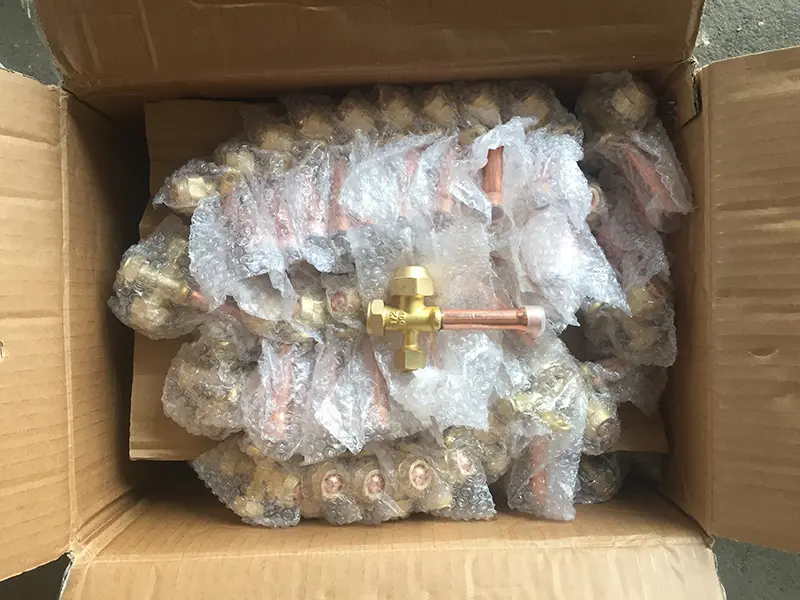

Package：carton

Applicable Industries: Construction industry, industrial machinery, air conditioning systems

Place of origin: Zhejiang,china

Teach you how to choose the right air conditioning pipe

Copper Tube Specification	Air - Conditioner Horsepower	Air - Conditioner Model	Copper Tube Diameter (MM)	Corresponding Imperial Specification
6 - 10	Small 1HP/1HP/Large 1HP, Inverter Small 1.5HP, 1.5HP/Large 1.5HP	KF23/KF25/KF26/KF27, KFR23/KFR25/KFR26	6(6.35)*10(9.52)	2 - 3 points
6 - 12	Small 1.5HP/Large 1.5HP, Large 1.5HP, Small 2HP/2HP/Large 2HP	KF32/KF33/KF35/KF36, KF46/KF48/KF50/KF51, KFR32/KFR33/KFR35, KFR46/KFR48/KFR50	6(6.35)*12(12.7)	2 - 4 points
6 - 16	Small 3HP/3HP/Large 3HP, Inverter 3HP	KF60/KF70/KF71/KF72, KFR61/KFR70/KFR71	6(6.35)*16(15.87)	2 - 5 points
10 - 16	Small 3HP/3HP/Large 3HP, Inverter 3HP	KF60/KF70/KF71/KF72, KFR61/KFR70/KFR71	10(9.52)*16(15.87)	3 - 5 points

● The above information is for reference only. Please measure the outer diameter of the copper tube or the nut to confirm the specification of the copper tube.

● For 3-horsepower air conditioners on the market, the specifications of the copper tubes used by different brands and new models are not uniform. Measurement and confirmation are required.

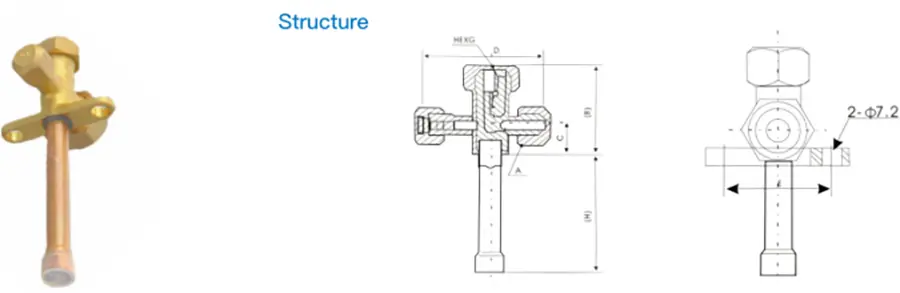

Structure and Size

Model	Clear opening	A	B	C	D	E	HEXG	H	Apply
TJ4(1/4")	4	7/16"-20UNF	38	14	52.5	38	60	5	1HP/1.5HP
TJ8(3/8")	8	5/8"-18UNF	43	16	54	38	60	5	1HP/3HP
TJ10(1/2")	10	3/4"-16UNF	45	16	57.5	38	60	5	1.5HP
TJ13(5/8")	13	7/8*-14UNF	53.5	19	65	38	60	5	3HP
TJ16(3/4")	16	1-1/16"-14UNF	60	21	72	44	60	5	5HP
TJ19(7/8")	19	1-1/4"-12UNF	66	26	79	44	60	5	8-10HP
TJ25(1-1/8")	25	1-7/16"-12UNF	76	29	97	55	60	8	8-15HP

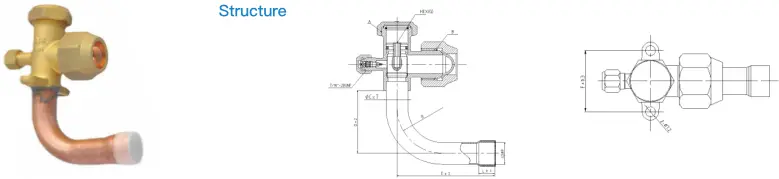

Model	A	B	*ΦCT**	D	F	E	HEXG	R	L	P	Apply
1/4"-TJ4	M16*I	7/16”—20UNF	Φ6.35*06	30	38±0.3	60	5	15	11	Φ6.35+0.1	TWO-WAY
1/4—TJ4	M16*I	7/16"—20UNF	Φ6.35*0.6	30	38±0.3	60	5	15	11	Φ6.35+0.1	THREE-WAY
3/8"-TJ8	M16*I	5/8"-18UNF	Φ9.52*0.7	35	38±0.3	60	5	20	13	Φ9.52+0.15	THREE-WAY
I/2-TJ10	M16*I	3/4"-16UNF	Φ12.7*0.7	35	38±0.3	60	5	20	13	Φ12.7+0.15	THREE-WAY
5/8—TJ13	M21*I	7/8"-14UNF	Φ15.88*0.8	40	38±0.3	60	5	25	15	Φ15.88+0.15	THREE-WAY
3/4"-TJ16	M24*I	1-1/16"-14UNF	Φ19.05*0.9	45	42±0.3	60	5	30	15	Φ19.05+0.2	THREE-WAY
